Removal [09/2014 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023] , or refer to INITIALIZATION [01/2023 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

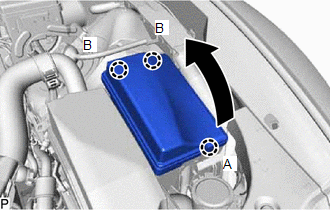

- REMOVE NO. 2 RELAY BLOCK COVER
- REMOVE SEMICONDUCTOR POWER INTEGRATION ECU
- Disengage the 2 claws.

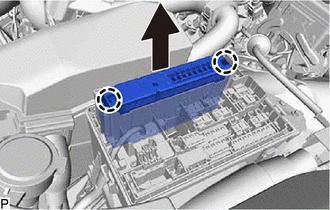

- Pull up the semiconductor pwr integration ECU as shown in the illustration.NOTE:
When pulling the semiconductor pwr integration ECU, take care not to damage it.

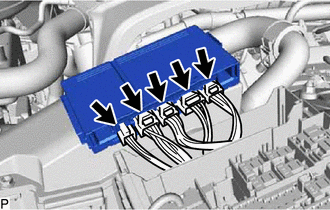

- Disconnect the 5 connectors and remove the semiconductor pwr integration ECU.NOTE:
When pulling the semiconductor pwr integration ECU, take care not to damage it.
- Disengage the 2 claws.
