Components [09/2014 - ]

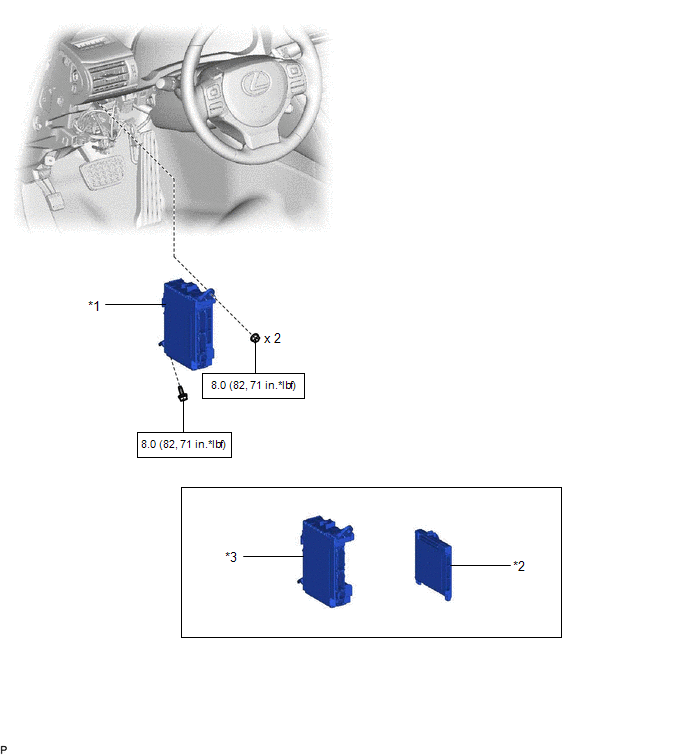

Fig 1: Main Body ECU Replacement Components With Torque Specifications
GTY496960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU *2 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
