Components [09/2014 - 01/2023]

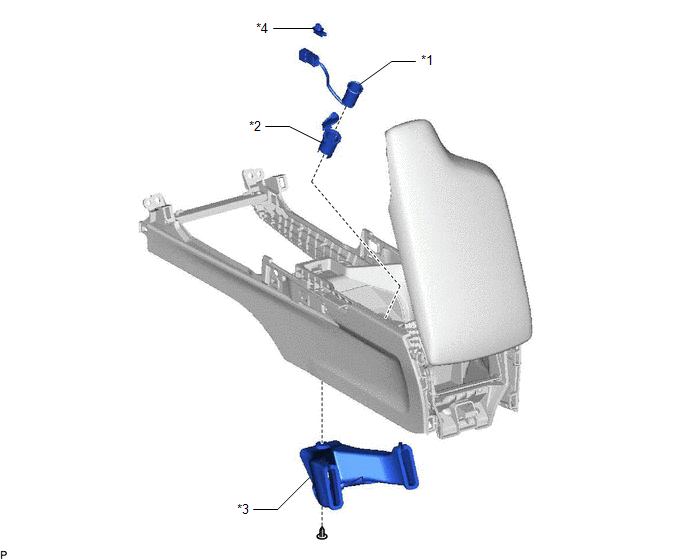

Fig 1: Power Outlet Socket Replacement Components [09/2014 - 01/2023]
GTY511776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 POWER OUTLET SOCKET ASSEMBLY *2 NO. 1 POWER OUTLET SOCKET COVER
*3 NO. 2 CONSOLE BOX DUCT *4 WIRING HARNESS CLAMP
