Components [09/2014 - ]

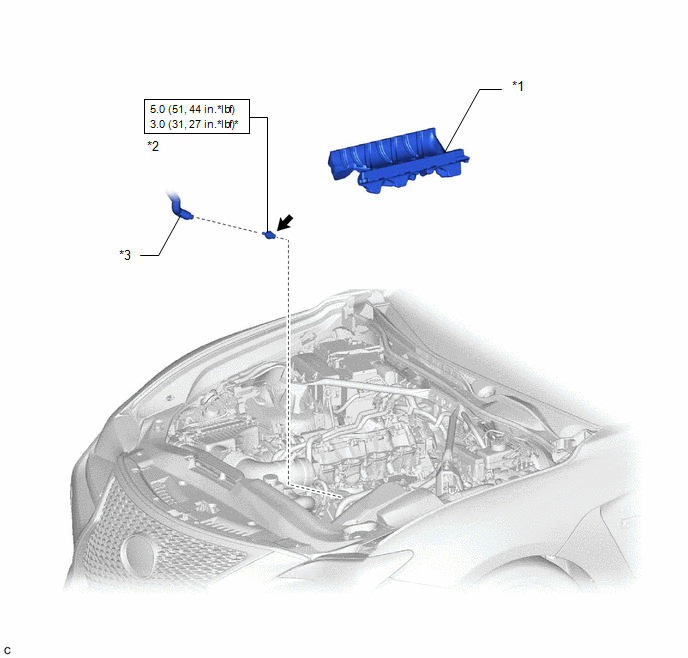

Fig 1: PCV Valve Replacement Components With Torque Specifications
GTY495442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
*3 VENTILATION HOSE ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque Adhesive 1324
* Precoated part * For use with ball joint lock nut wrench
