Inspection [09/2014 - ]: Procedure

  1. INSPECT ENGINE OIL LEVEL SENSOR
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 ON Below 1 Ω
      OFF 1 kΩ or higher

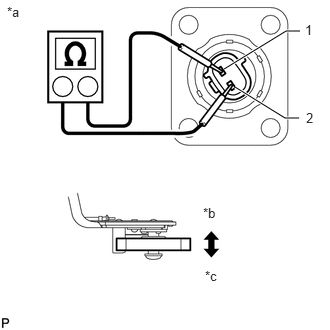

      GTY460584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Engine Oil Level Sensor)
      *b ON
      *c OFF

      If the result is not as specified, replace the engine oil level sensor.
