Installation [09/2014 - ]: Procedure

  1. INSTALL ENGINE OIL LEVEL SENSOR
    1. Install a new gasket to the engine oil level sensor.

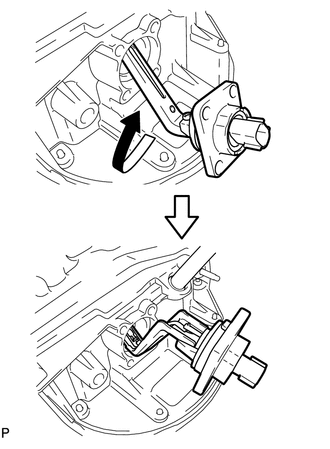

    2. Install the engine oil level sensor to the oil pan sub-assembly and rotate it 180° clockwise.
      GTY148461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 4 bolts.

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

      HINT:

      Be sure to clean the contact surface.

    4. Connect the engine oil level sensor connector.
  2. INSTALL CRANK POSITION SENSOR BRACKET
    1. Install the crank position sensor bracket with the bolt.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    2. Engage the clamp.
  3. INSTALL OIL COOLER TUBE
    1. Install the oil cooler tube with the 2 bolts.

      Torque: 13.5 N.m (138 kgf/cm, 10 ft.lbf)

  4. ADD ENGINE OIL

    See step  5 [09/2014 - 10/2015], or see step  5 [10/2015 - 11/2021], or see step  5 [11/2021 - ]

  5. INSPECT ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1 [09/2014 - 10/2023] , or refer to PROCEDURE - Step 1 [10/2023 - ]

  6. INSPECT FOR ENGINE OIL LEAK

    See step  6 [09/2014 - 10/2015], or see step  6 [10/2015 - 11/2021], or see step  6 [11/2021 - ]

  7. INSTALL FRONT LOWER SUSPENSION MEMBER PROTECTOR

    Refer to PROCEDURE - Step 67 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 68 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 67 [03/2019 - ]

  8. INSTALL NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 66 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 67 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 66 [03/2019 - ]

  9. INSTALL FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 68 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 69 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 68 [03/2019 - ]

  10. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 94 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 95 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 94 [03/2019 - ]
