On-Vehicle Inspection [09/2014 - ]: Procedure

  1. INSPECT ST RELAY
    1. Measure the resistance according to the value(s) in the table below.

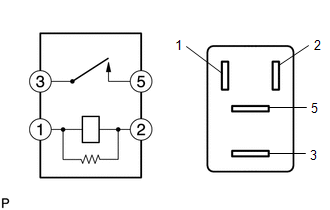

      GTY509439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher
      Battery voltage applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the ST relay.
