Inspection [09/2014 - ]: Procedure

INSPECT FUEL PRESSURE SENSOR

NOTE:

Do not remove the fuel pressure sensor from the fuel delivery pipe LH.
If a fuel pressure sensor is removed, replace the fuel delivery pipe LH (fuel pressure sensor) with a new one.

Check the fuel pressure sensor output voltage.

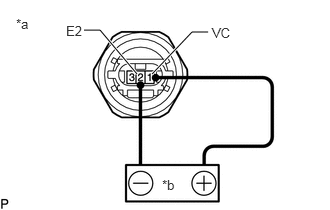

Apply 5 V between terminals 1 (VC) and 2 (E2).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Component without harness connected (Fuel Pressure Sensor)
*b	Voltage applied between terminals

NOTE:

Be careful when connecting the leads as the fuel pressure sensor may be damaged if the leads are connected to the wrong terminals.
Do not apply more than 6 V to terminals 1 (VC) and 2 (E2).

HINT:

If a stable power supply is not available, use 4 1.2 V nickel-metal hydride batteries or equivalent.

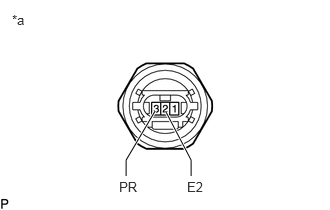

Measure the voltage between terminals.

Standard Voltage

Tester Connection	Condition	Specified Condition
3 (PR) - 2 (E2)	Pressure not applied to fuel pressure sensor	Approximately 0.4 to 0.6 V*

*: The output voltage changes depending on the voltage applied to the terminals. Output voltage = (0.08 x Voltage applied to terminals) to (0.12 x Voltage applied to terminals)

If the result is not as specified, replace the fuel delivery pipe LH (fuel pressure sensor).

*a	Component without harness connected (Fuel Pressure Sensor)
