Components [09/2014 - ]

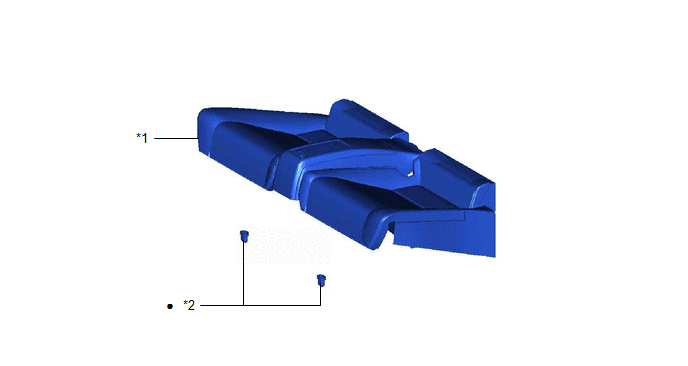

| *1 | REAR SEAT CUSHION ASSEMBLY | *2 | REAR SEAT CUSHION LOCK HOOK |
| • | Non-reusable part | - | - |

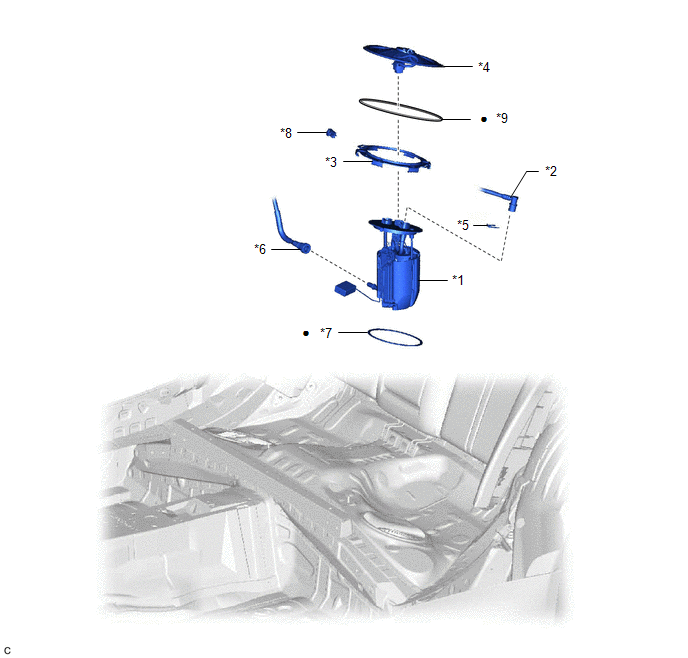

| *1 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *2 | FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *3 | FUEL PUMP GAUGE RETAINER | *4 | REAR FLOOR SERVICE HOLE COVER |
| *5 | TUBE JOINT CLIP | *6 | FUEL RETURN VENT TUBE SUB-ASSEMBLY |
| *7 | FUEL SUCTION TUBE SET GASKET | *8 | NO. 1 FUEL TUBE CLAMP |
| *9 | BUTYL TAPE | - | - |
| • | Non-reusable part | - | - |

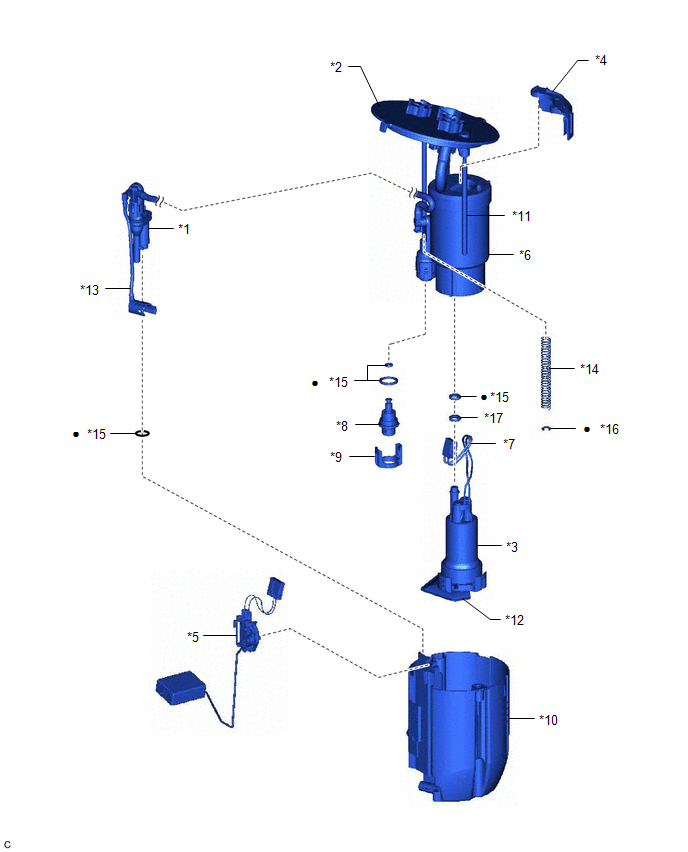

for Brush Type Motor
| *1 | JET PUMP | *2 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *3 | FUEL PUMP WITH FILTER ASSEMBLY | *4 | NO. 1 FUEL SUCTION SUPPORT |
| *5 | FUEL SENDER GAUGE ASSEMBLY | *6 | FUEL FILTER |
| *7 | FUEL PUMP HARNESS | *8 | FUEL MAIN VALVE ASSEMBLY |
| *9 | NO. 2 FUEL SUCTION SUPPORT | *10 | NO. 1 FUEL SUB-TANK |
| *11 | FUEL SUCTION PLATE SHAFT | *12 | SUCTION FILTER |
| *13 | FUEL TUBE | *14 | SPRING |
| *15 | O-RING | *16 | E-RING |
| *17 | FUEL PUMP SPACER | - | - |
| • | Non-reusable part | - | - |

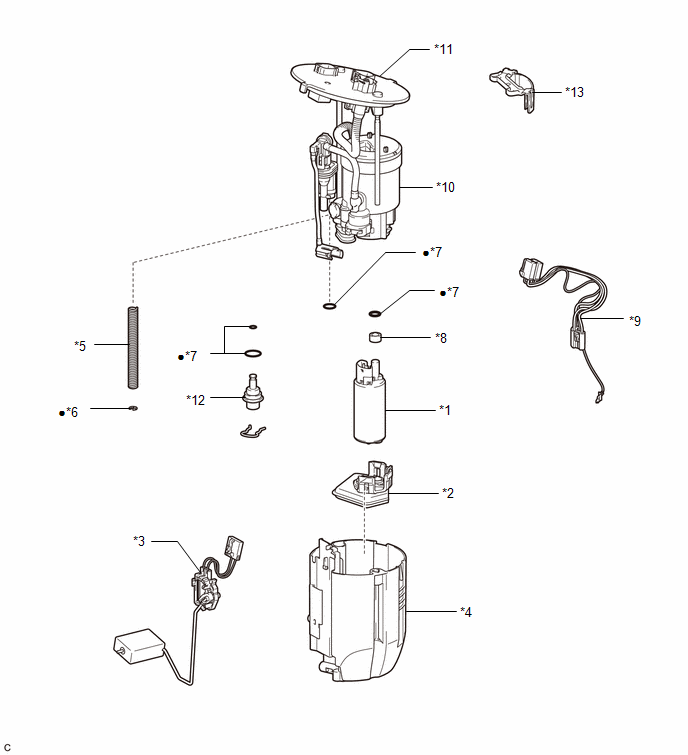

for Brushless Type Motor
| *1 | FUEL PUMP | *2 | FUEL PUMP FILTER |
| *3 | FUEL SENDER GAUGE ASSEMBLY | *4 | NO. 1 FUEL SUB-TANK |
| *5 | SPRING | *6 | E-RING |
| *7 | O-RING | *8 | FUEL PUMP SPACER |
| *9 | FUEL PUMP HARNESS | *10 | FUEL FILTER |
| *11 | FUEL SUCTION PLATE SUB-ASSEMBLY | *12 | FUEL MAIN VALVE ASSEMBLY |
| *13 | NO. 1 FUEL SUCTION SUPPORT | - | - |
| • | Non-reusable part | - | - |
