Disassembly [09/2014 - ]: Procedure

  1. REMOVE FUEL SENDER GAUGE ASSEMBLY

    See step  6

  2. REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY (for Brush Type Motor)
    1. Disengage the clamp to disconnect the fuel pump harness from the fuel suction plate sub-assembly.

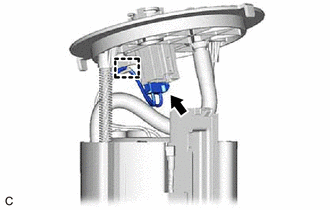

      GTY498819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the fuel pump harness connector.
    3. Using needle nose pliers, remove the E-ring from the fuel suction plate shaft.

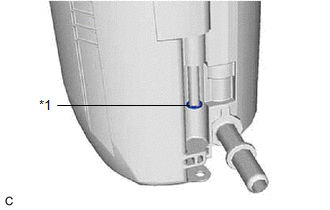

      GTY517938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 E-ring
    4. Remove the fuel suction plate sub-assembly and spring from the No. 1 fuel sub-tank.
  3. REMOVE FUEL FILTER (for Brush Type Motor)
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws, and remove the fuel filter and fuel pump with filter assembly from the No. 1 fuel sub-tank.

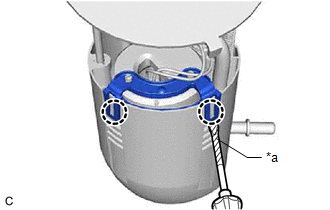

      GTY507349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Do not damage the No. 1 fuel sub-tank or fuel filter.

  4. REMOVE JET PUMP (for Brush Type Motor)
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the fuel tube.

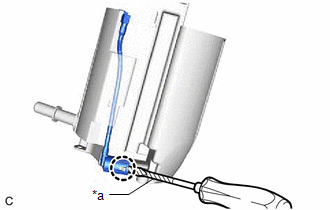

      GTY512734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Using a screwdriver with its tip wrapped with protective tape, remove the jet pump from the No. 1 fuel sub-tank.
      GTY497482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    3. Remove the O-ring from the jet pump.

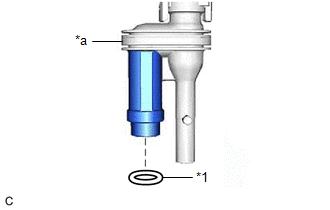

      GTY502489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
      *a Jet Pump
  5. REMOVE NO. 1 FUEL SUCTION SUPPORT (for Brush Type Motor)

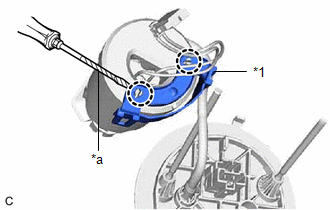

    GTY508637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 No. 1 Fuel Suction Support
    *a Protective Tape
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the No. 1 fuel suction support from the fuel filter.
  6. REMOVE FUEL PUMP WITH FILTER ASSEMBLY (for Brush Type Motor)
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws, and remove the fuel pump with filter assembly from the fuel filter.

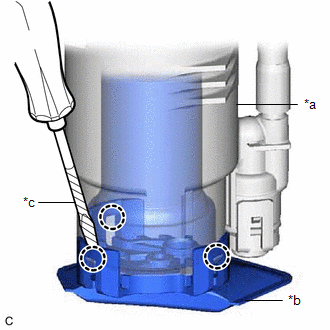

      GTY509327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fuel Filter
      *b Suction Filter
      *c Protective Tape
      NOTE:
      • Do not damage the fuel filter.
      • Do not remove the suction filter.
      • Do not use either the fuel pump with filter assembly or the suction filter if the suction filter is removed from the fuel pump with filter assembly.

        Refer to PRECAUTION [09/2014 - 09/2020] , or refer to PRECAUTION [09/2020 - ]

    2. Remove the O-ring and the fuel pump spacer from the fuel pump with filter assembly.

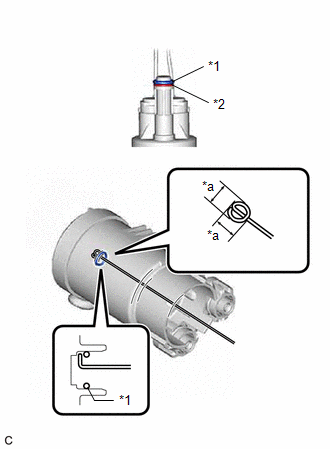

      GTY1084293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
      *2 Fuel Pump Spacer
      *a 5.0 mm (0.197 in.)
      NOTE:

      Be careful not to damage the sealing surface.

      HINT:

      If the O-ring still remains in the fuel filter, remove it using a wire tip (1.0 mm (0.0394 in.) diameter) that is formed as shown in the illustration.

  7. REMOVE FUEL MAIN VALVE ASSEMBLY (for Brush Type Motor)
    1. Disengage the 2 claws to remove the No. 2 fuel suction support from the fuel filter.

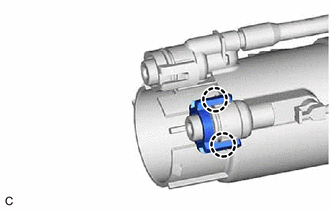

      GTY1084373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.

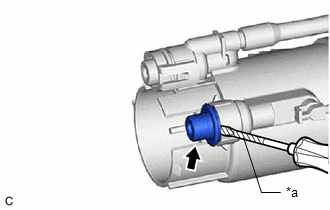

      GTY1084326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Slowly pull out the fuel main valve assembly because the O-ring is firmly installed between the fuel main valve assembly and fuel filter.

    3. Remove the 2 O-rings from the fuel main valve assembly.
      GTY470974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
  8. REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY (for Brushless Type Motor)
    1. Disconnect the 2 fuel pump harness connectors.

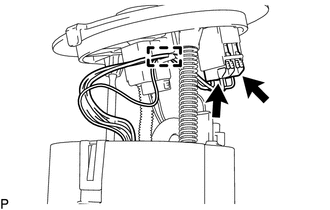

      GTY660227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to disconnect the fuel pump harness from the fuel suction plate sub-assembly.
    3. Using needle nose pliers, remove the E-ring from the fuel suction plate shaft.

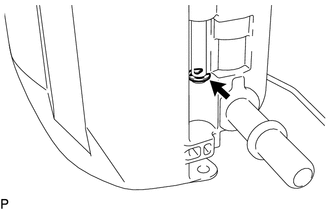

      GTY660226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 claws and disconnect the jet pump nozzle from the No. 1 fuel sub-tank.

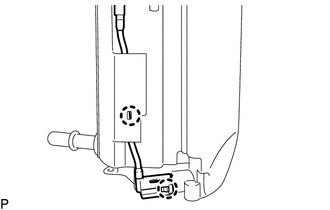

      GTY660225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver with its tip wrapped with protective tape, remove the jet pump from the No. 1 fuel sub-tank.

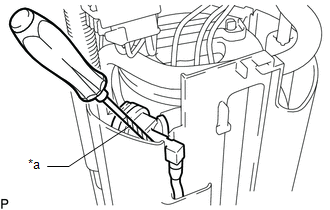

      GTY783858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:
      • Do not damage the No. 1 fuel sub-tank, fuel filter or jet pump.
      • Pull out the jet pump carefully because the O-ring is firmly installed between the jet pump and No. 1 fuel sub-tank.
    6. Disengage the 2 claws and remove the fuel filter from the No. 1 fuel sub-tank.

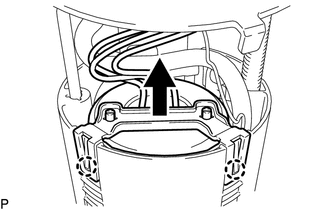

      GTY660224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the spring from the fuel suction plate shaft.
    8. Remove the O-ring from the No. 1 fuel sub-tank.

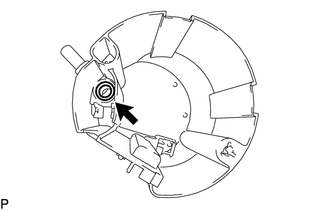

      GTY660232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 FUEL SUCTION SUPPORT (for Brushless Type Motor)
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the No. 1 fuel suction support from the fuel filter.

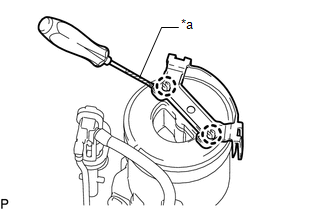

      GTY787536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  10. REMOVE FUEL PUMP FILTER (for Brushless Type Motor)
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws, and remove the fuel pump filter from the fuel filter.

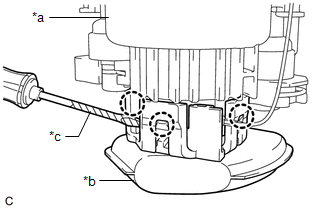

      GTY785160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fuel Filter
      *b Fuel Pump Filter
      *c Protective Tape
    2. Disengage the claw to disconnect the fuel pump harness from the fuel pump filter.

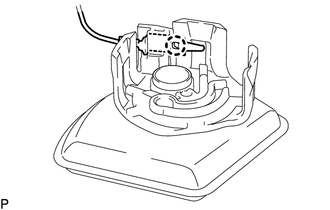

      GTY628768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FUEL PUMP (for Brushless Type Motor)
    1. Remove the fuel pump from the fuel filter.

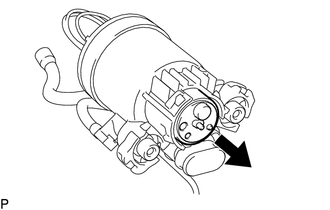

      GTY628775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the fuel pump harness connector to remove the fuel pump harness from the fuel pump.

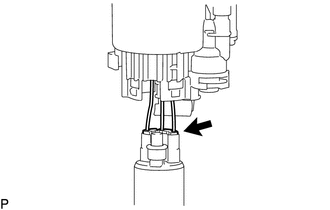

      GTY628776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring and fuel pump spacer from the fuel pump.

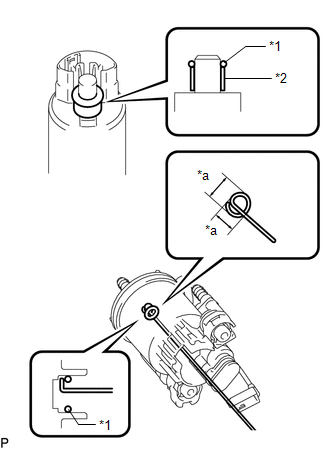

      GTY782938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
      *2 Fuel Pump Spacer
      *a 5.0 mm (0.197 in.)
      NOTE:

      Be careful not to damage the sealing surface.

      HINT:

      If the O-ring still remains in the fuel filter, remove it using a wire tip (1 mm (0.0394 in.) diameter) that is formed as shown in the illustration.

  12. REMOVE FUEL MAIN VALVE ASSEMBLY (for Brushless Type Motor)

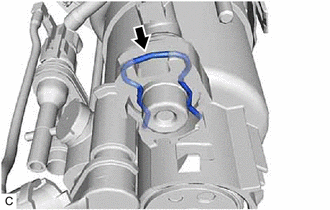

    1. GTY804760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the clip from the fuel filter.

    2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.
      NOTE:
      • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
      • Do not damage the fuel filter.

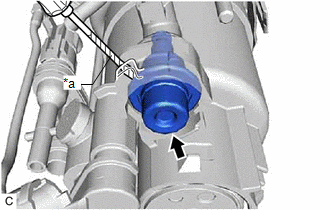

      GTY786103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    3. Remove the 2 O-rings from the fuel main valve assembly.

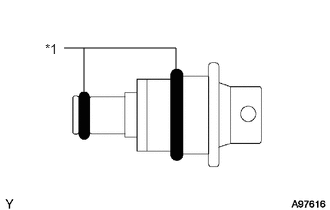

      GTY652718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
