Components [09/2014 - ]

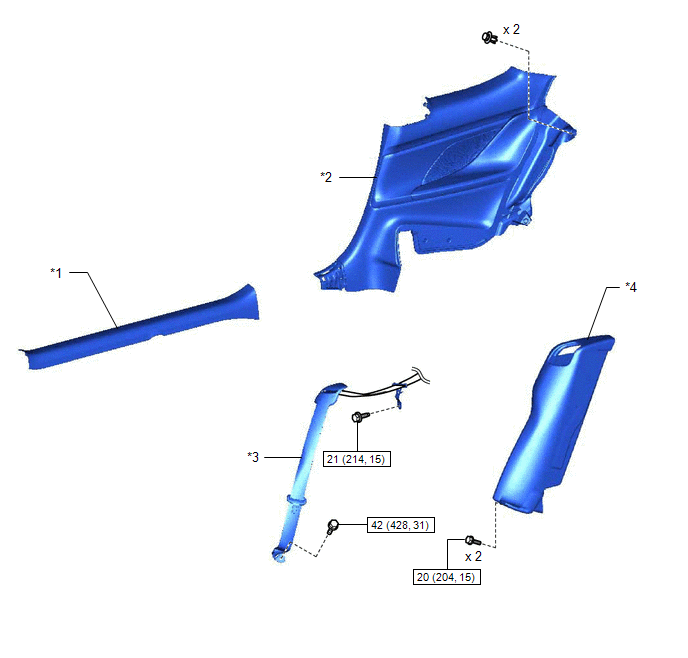

Fig 1: Fuel Sender Gauge Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR SCUFF PLATE RH	*2	FRONT QUARTER TRIM PANEL ASSEMBLY RH
*3	REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH	*4	REAR SIDE SEATBACK ASSEMBLY RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Fuel Sender Gauge Assembly Replacement Components (2 Of 2)

*1	FUEL SENDER GAUGE ASSEMBLY	*2	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
*3	FUEL TANK VENT TUBE ASSEMBLY	*4	NO. 2 FUEL SENDER GAUGE ASSEMBLY
*5	REAR FLOOR SERVICE HOLE COVER	*6	NO. 1 FUEL TUBE CLAMP
*7	FUEL PUMP GAUGE RETAINER	*8	FUEL RETURN VENT TUBE SUB-ASSEMBLY
*9	FUEL SUCTION TUBE SET GASKET	*10	BUTYL TAPE
•	Non-reusable part	-	-
