Components [09/2020 - ]

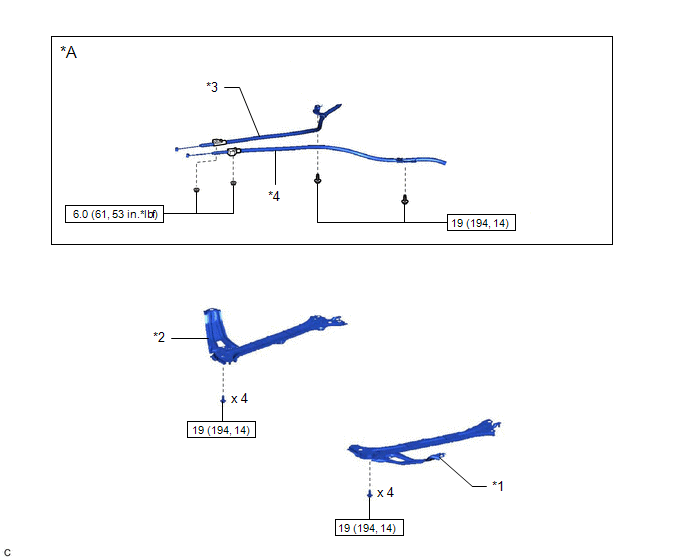

Fig 1: Fuel Tank Replacement Components With Torque Specifications [09/2020 - ] (1 Of 2)

GTY1084519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Electric Parking Brake System	-	-
*1	REAR BODY MOUNTING CUSHION SUB-ASSEMBLY LH	*2	REAR BODY MOUNTING CUSHION SUB-ASSEMBLY RH
*3	NO. 2 PARKING BRAKE CABLE ASSEMBLY	*4	NO. 3 PARKING BRAKE CABLE ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

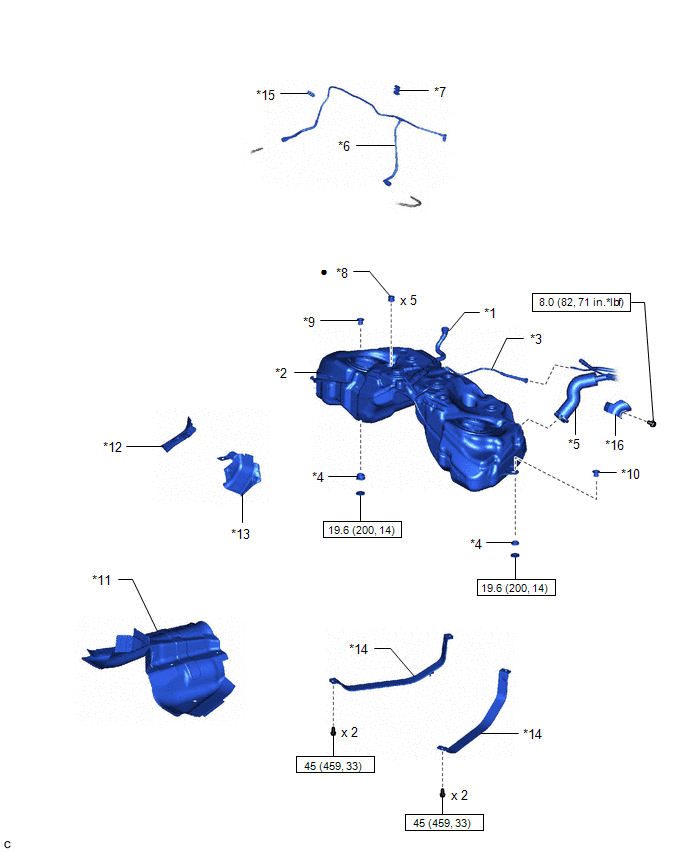

Fig 2: Fuel Tank Replacement Components With Torque Specifications [09/2020 - ] (2 Of 2)

GTY948774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL CUT OFF VALVE TUBE	*2	FUEL TANK ASSEMBLY
*3	FUEL TANK BREATHER TUBE	*4	FUEL TANK CUSHION
*5	FUEL TANK TO FILLER PIPE HOSE	*6	FUEL TANK MAIN TUBE SUB-ASSEMBLY
*7	NO. 5 FUEL TUBE CLAMP	*8	NO. 6 FUEL TANK CUSHION
*9	FUEL TANK BRACKET	*10	FUEL TANK CUSHION SET
*11	NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY	*12	NO. 2 FUEL TANK PROTECTOR
*13	NO. 3 FUEL TANK PROTECTOR	*14	NO. 1 FUEL TANK BAND SUB-ASSEMBLY
*15	NO. 3 FUEL TUBE CLAMP	*16	NO. 2 FUEL TANK FILLER PIPE SUPPORT
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
