Removal [09/2014 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023] , or refer to INITIALIZATION [01/2023 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 2 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 2 [03/2019 - ]
- REMOVE INJECTOR DRIVER

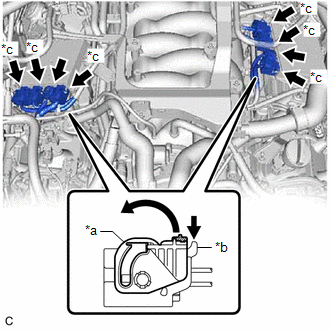

- Push the lock and move the lock lever of each connector (with lock) as shown in the illustration and disconnect the 6 connectors (with lock) from the 2 injector drivers.
*a Lock Lever *b Lock *c Connector (with Lock) - Disconnect the 2 injector driver connectors.

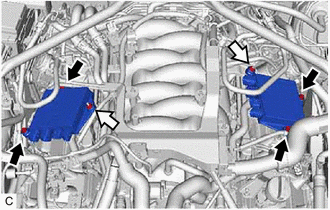

- Remove the 4 bolts, 2 nuts and 2 injector drivers.
Bolt Nut NOTE:Be careful not to drop or strike the injector driver.
- Push the lock and move the lock lever of each connector (with lock) as shown in the illustration and disconnect the 6 connectors (with lock) from the 2 injector drivers.
