Inspection [09/2014 - ]: Procedure

  1. INSPECT SKID CONTROL BUZZER
    1. Make sure that there is no looseness at the locking part and the connecting part of the connector.
      GTY444565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the skid control buzzer connector.
    3. Check both the connector case and the terminal for deformation and corrosion.

      OK

      No deformation or corrosion.

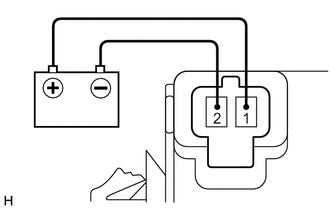

    4. Connect a negative (-) lead from the battery to terminal 2, and a positive (+) lead to terminal 1 of the skid control buzzer, and then check that the buzzer sounds.

      OK

      The skid control buzzer sounds.

      If the result is not as specified, replace the skid control buzzer.
