Removal [09/2014 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 9 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 9 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 9 [09/2020 - 01/2023] , or refer to PROCEDURE - Step 9 [01/2023 - ]

  2. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 10 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 10 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 10 [09/2020 - 01/2023] , or refer to PROCEDURE - Step 10 [01/2023 - ]

  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 11 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 11 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 11 [09/2020 - 01/2023] , or refer to PROCEDURE - Step 11 [01/2023 - ]

  4. REMOVE SKID CONTROL BUZZER

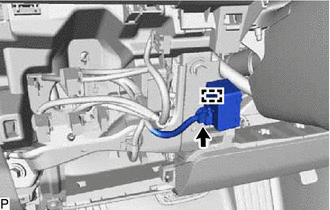

    1. Disengage the clamp.
      GTY464627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the skid control buzzer.
