Components [09/2014 - 11/2017]

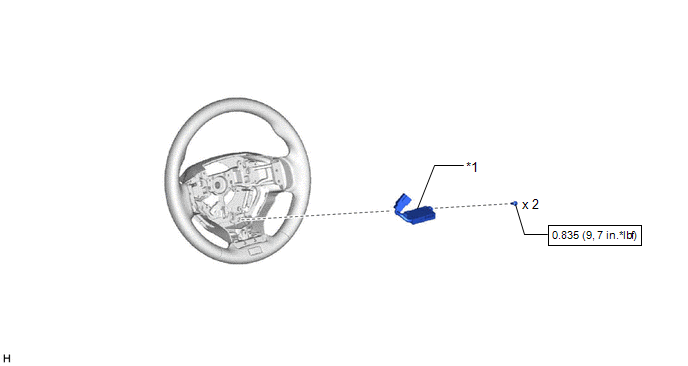

Fig 1: Heated Steering Wheel Controller Replacement Components With Torque Specifications [09/2014 - 11/2017]
GTY512154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING WHEEL HEATER CONTROL ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
