Installation [09/2014 - 03/2019]: Procedure
- INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
- Install the steering sliding yoke sub-assembly with No. 2 steering intermediate shaft assembly to the power steering link assembly.

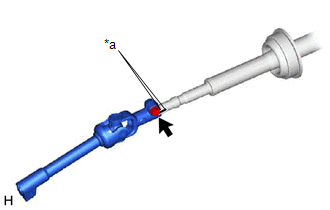

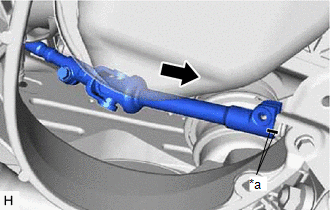

*a Matchmark NOTE:Align the matchmarks on the steering sliding yoke sub-assembly and power steering link assembly.

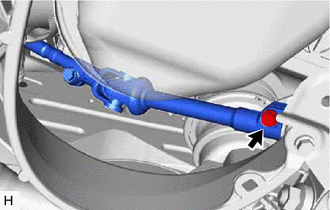

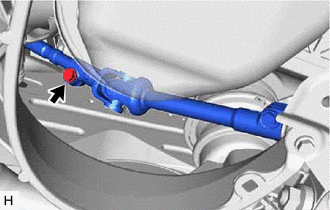

- Install the bolt.
Torque: 35.3 N.m (360 kgf/cm, 26 ft.lbf)
- Tighten the clamp.
- Install the steering sliding yoke sub-assembly with No. 2 steering intermediate shaft assembly to the power steering link assembly.
- INSTALL STEERING COLUMN ASSEMBLY
- Install the steering column assembly to the No. 2 steering intermediate shaft assembly.

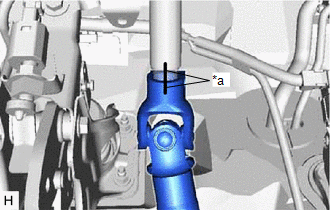

*a Matchmark NOTE:Align the matchmarks on the steering column assembly and No. 2 steering intermediate shaft assembly.
- Install the steering column assembly with the 4 nuts.
Torque: 25.5 N.m (260 kgf/cm, 19 ft.lbf)
- Install the bolt.
Torque: 35.3 N.m (360 kgf/cm, 26 ft.lbf)

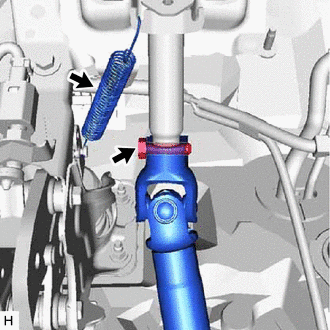

- Install the brake pedal return spring to the push rod pin and steering column assembly.
- Connect each connector and engage each wire harness clamp to the steering column assembly.
- Fully tighten the bolt.
Torque: 35.3 N.m (360 kgf/cm, 26 ft.lbf)
- Install the steering column assembly to the No. 2 steering intermediate shaft assembly.
- INSTALL FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY
Refer to PROCEDURE - Step 68 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 69 [05/2018 - 03/2019]
- INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY
- Install the No. 1 air duct sub-assembly with the bolt.
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
- Install the No. 1 air duct sub-assembly with the bolt.
- INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to INSTALLATION [09/2014 - ]
- INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY NOTE:
- Do not replace the spiral cable with sensor sub-assembly with the battery connected and the engine switch on (IG).
- Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the engine switch on (IG).
- Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
- Engage the 3 claws to install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly.
- Connect each connector to the turn signal switch assembly with spiral cable sub-assembly.
- INSTALL STEERING COLUMN COVER
- Engage the 2 claws to install the steering column cover (upper).
- Engage the 6 clips to the steering column cover (upper).
- Engage the 2 claws to install the steering column cover (lower).
- Install the 3 screws.
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 6 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 6 [11/2017 - 01/2023]
- INSTALL STEERING WHEEL ASSEMBLY
- CHECK STEERING WHEEL CENTER POINT
- INSTALL HORN BUTTON ASSEMBLY
Refer to INSTALLATION [09/2014 - ]
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
- Reset the auto tilt away function setting to the previous condition by changing the customize parameter.
Refer to CUSTOMIZE PARAMETERS [09/2014 - ]
- Reset the auto tilt away function setting to the previous condition by changing the customize parameter.
- ADJUST PARKING ASSIST MONITOR SYSTEM (w/ Parking Assist Monitor System)
Refer to CALIBRATION [09/2014 - 11/2017] , or refer to CALIBRATION [11/2017 - ]
