Reassembly [09/2014 - 03/2019]: Procedure

  1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU
    1. Install the multiplex tilt and telescopic ECU with the 2 screws.
  2. INSTALL STEERING LOCK ACTUATOR ASSEMBLY
    NOTE:

    If the steering lock actuator assembly is replaced, refer to Registration.

    Refer to REGISTRATION [09/2014 - 03/2019]

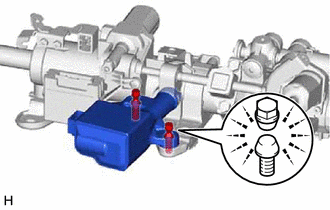

    1. GTY460390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Temporarily install the steering lock actuator assembly with 2 new steering lock set bolts.

    2. Tighten the 2 steering lock set bolts until the bolt head breaks off.
