Installation [09/2014 - 11/2017]: Procedure

1. Install the steering shake damper to the steering wheel sub-assembly with the 2 screws.

   Torque: 2.4 N.m (24 kgf/cm, 21 in.lbf)

See step  1

1. Engage the 5 guides to install the 2 shift paddle switches (transmission shift switch assemblies) with No. 1 switch wire to the steering wheel assembly.
2. Install the 2 shift paddle switches (transmission shift switch assemblies) to the steering wheel assembly with 4 new screws.

   Torque: 1.7 N.m (17 kgf/cm, 15 in.lbf)

Refer to PROCEDURE - Step 1

1. Install the cruise control switch wire.

See step  1

Refer to PROCEDURE - Step 6

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

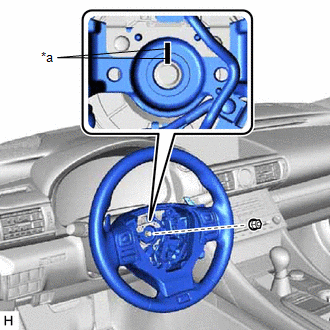

   *a

   Matchmark

   Align the matchmarks on the steering wheel assembly and steering main shaft to install the steering wheel assembly.

2. Install the steering wheel assembly set nut.

   Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)

3. w/ Steering Heater:
   1. Connect the connector to the steering wheel heater control assembly.
4. Connect each connector to the spiral cable with sensor sub-assembly.

Refer to INSTALLATION [09/2014 - ]
