Components [03/2019 - 01/2023]

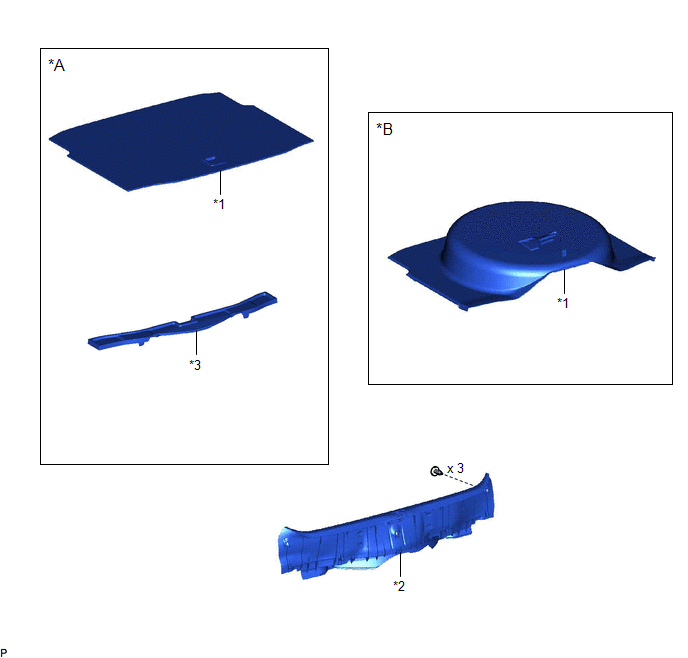

| *A | w/o Spare Tire | *B | w/ Spare Tire |
| *1 | NO. 1 LUGGAGE COMPARTMENT TRIM COVER | *2 | REAR LUGGAGE COMPARTMENT TRIM COVER |
| *3 | SPARE WHEEL COVER TRAY | - | - |

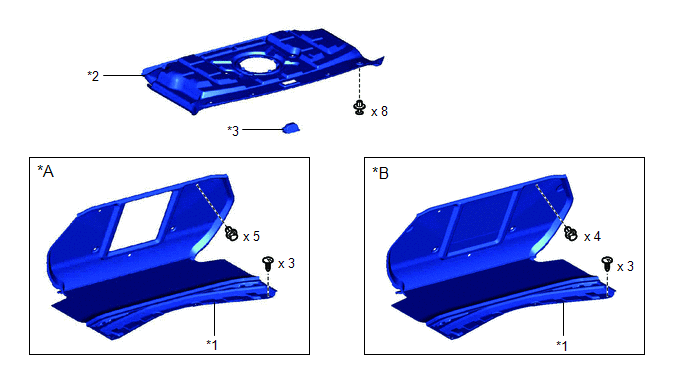

| *A | w/ Rear Seat Armrest | *B | w/o Rear Seat Armrest |
| *1 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *2 | FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER |
| *3 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | - | - |
Fig 3: Rear Speed Sensor Replacement Components With Torque Specifications [03/2019 - 01/2023] (3 Of 4)
| *A | for LSD | *B | for Torque Vectoring Differential |
| *1 | LUGGAGE COMPARTMENT TRIM COVER RH | *2 | TORQUE VECTORING DIFFERENTIAL ECU ASSEMBLY |
| *3 | ROPE HOOK ASSEMBLY | *4 | DECK SIDE TRIM BOX RH |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
Fig 4: Rear Acceleration Sensor Replacement Components With Torque Specifications [03/2019 - 01/2023] (4 Of 4)
| *1 | ACCELERATION SENSOR ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | *T1 | for Type A: 8.5 (87, 75 in.lbf) for Type B: 10 (102, 7) |
