Removal [08/2016 - 01/2023]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023]

  3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER (w/o Spare Tire)

    Refer to PROCEDURE - Step 5 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 5 [03/2019 - ]

  4. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER (w/ Spare Tire)

    Refer to PROCEDURE - Step 6 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 6 [03/2019 - ]

  5. REMOVE SPARE WHEEL COVER TRAY (w/o Spare Tire)

    Refer to PROCEDURE - Step 7 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 7 [03/2019 - ]

  6. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 8 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 8 [03/2019 - ]

  7. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 10 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 10 [03/2019 - ]

  9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 11 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 11 [03/2019 - ]

  10. SEPARATE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 11

  11. REMOVE TORQUE VECTORING DIFFERENTIAL ECU ASSEMBLY (for Torque Vectoring Differential)

    Refer to PROCEDURE - Step 10

  12. REMOVE ACCELERATION SENSOR ASSEMBLY
    1. for LSD:
      1. Turn back the luggage compartment trim cover RH until the acceleration sensor assembly can be seen.
    2. Disconnect the connector.

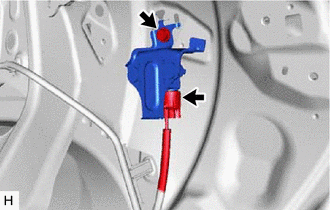

      GTY503316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and acceleration sensor assembly.
      NOTE:
      • Avoid any impact to the acceleration sensor assembly.
      • Do not drop the acceleration sensor assembly. If it is dropped, replace it with a new one.
