Components [01/2023 - ]

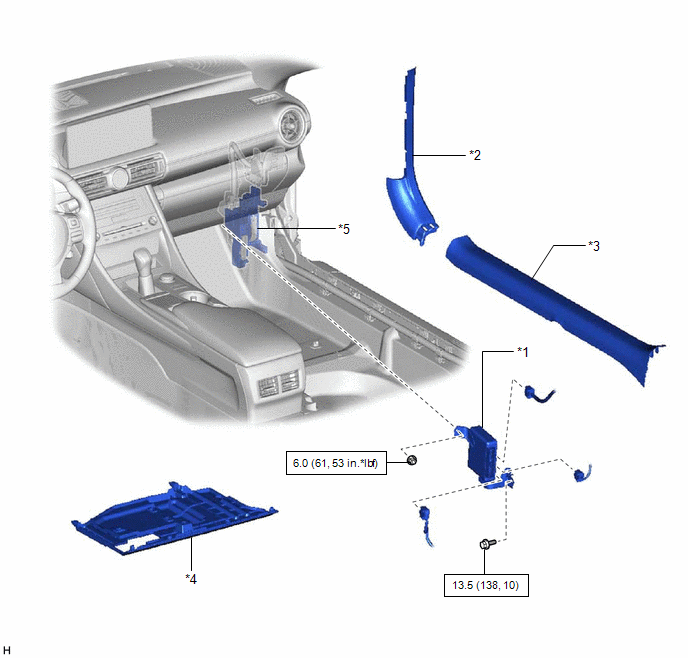

Fig 1: Suspension Control ECU Replacement Components With Torque Specifications [01/2023 - ]
GTY1175120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ABSORBER CONTROL ECU *2 FRONT DOOR OPENING TRIM COVER RH
*3 FRONT DOOR SCUFF PLATE RH *4 NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*5 CONNECTOR HOLDER - -
N.m (kgf/cm, ft.lbf): Specified torque - -
