Removal [09/2014 - 03/2019]: Procedure

Refer to REMOVAL [09/2014 - ]

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 5

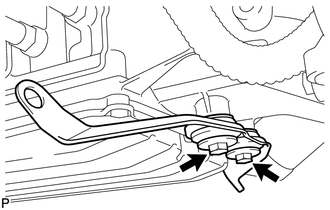

1. Remove the 2 bolts and No. 1 exhaust pipe support bracket sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

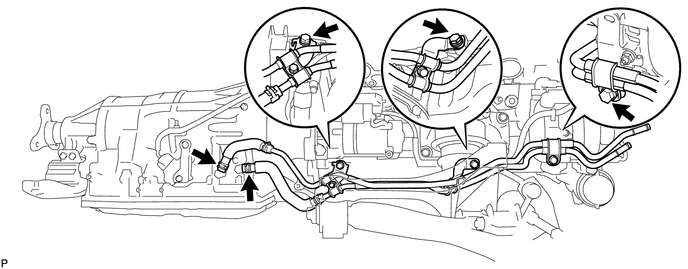

1. Slide the 2 clips and disconnect the 2 oil cooler hoses from the automatic transmission assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use a container to catch any ATF which flows out of the 2 oil cooler hoses.

2. Remove the 3 bolts and oil cooler tube from the No. 2 flexible hose clamp and engine assembly.

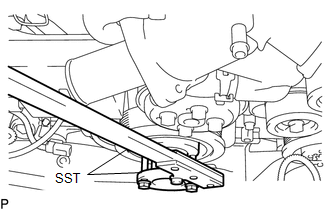

1. Using SST, hold the crankshaft pulley.
   • SST: 09213-38010
   • SST: 09330-00021

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

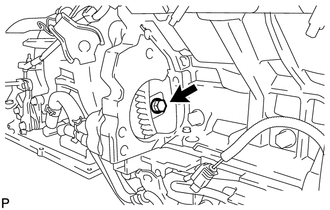

2. Remove the 6 drive plate and torque converter assembly setting bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   There will be one black colored bolt.

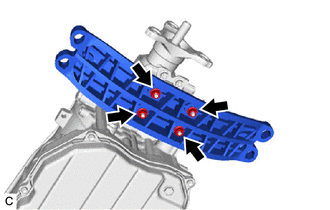

1. Remove the 4 nuts and rear engine mounting member from the rear engine mounting insulator.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

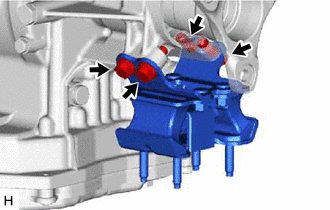

1. Remove the 4 bolts and rear engine mounting insulator assembly from the automatic transmission assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

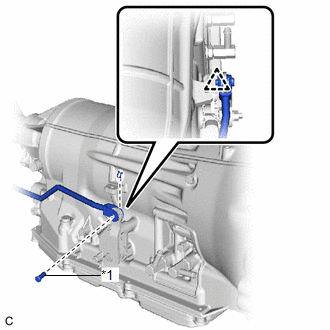

1. Remove the clip.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   Pin

   Remove the pin and floor shift gear shifting rod sub-assembly from the transmission control shaft lever RH.

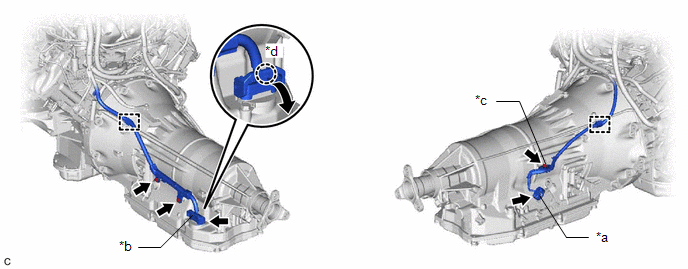

1. Disconnect the park/neutral position switch assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Park/Neutral Position Switch Assembly Connector	*b	Transmission Wire Connector
   *c	Nut	*d	Claw

2. Disconnect the transmission wire connector.

   HINT:

   Disengage the claw, pull down the lever, and then disconnect the transmission wire connector.

3. Disengage the 2 clamps.
4. Remove the nut and 2 bolts.
5. Disconnect the wire harness from the automatic transmission assembly.

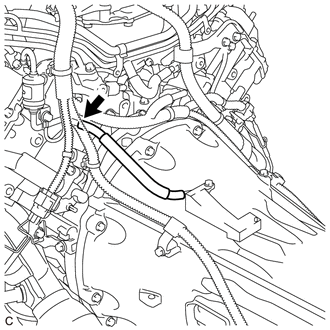

1. Disconnect the breather plug hose from the transmission breather assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

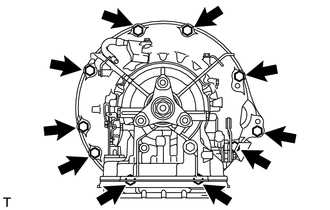

2. Remove the 10 bolts and automatic transmission assembly from the engine assembly.
   NOTE:

   • To prevent damage to the 2 knock pins, do not pry between the automatic transmission assembly and engine assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

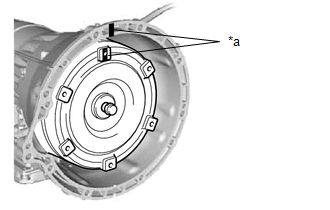

1. Put matchmarks on the automatic transmission case sub-assembly and the torque converter assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the torque converter assembly from the automatic transmission assembly.

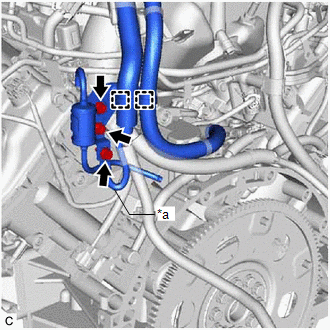

1. Remove the bolt and disconnect the ground wire from transmission breather assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Ground Wire

2. Disengage the 2 clamps to disconnect the wire harness from transmission breather assembly.
3. Remove the 2 bolts and transmission breather assembly from the engine assembly.

Refer to INSPECTION [09/2014 - ]
