Inspection [09/2014 - ]: Procedure

  1. INSPECT KICK DOWN SWITCH ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

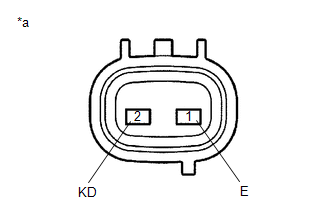

      GTY499595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Kick Down Switch Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (E) - 2 (KD) Pushed (ON) Below 1 Ω
      Released (OFF) 10 kΩ or higher

      If the result is not as specified, replace the kick down switch assembly.
