Removal [09/2014 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 2 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 2 [03/2019 - ]

  2. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 6 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 6 [03/2019 - ]

  3. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 3 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 3 [11/2017 - ]

  4. REMOVE FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 4 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 4 [11/2017 - ]

  5. REMOVE ACCELERATOR PEDAL ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  6. REMOVE NO. 3 DASH PANEL INSULATOR PAD
    1. Using a clip remover, remove the clip.

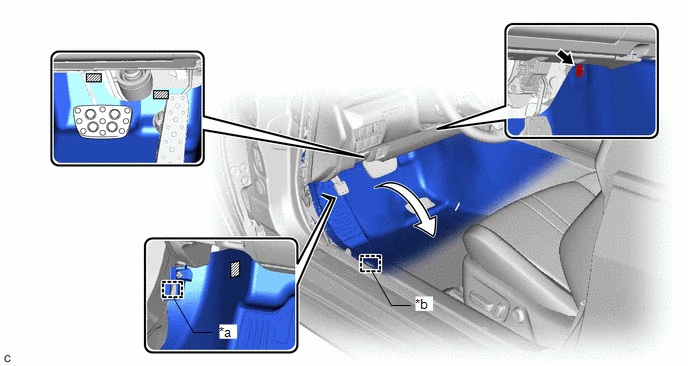

      GTY506250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp *b Guide
      Fastener - -
    2. Disengage the clamp.
    3. Disengage the guide.
    4. Disengage each fastener and turn back the front floor carpet assembly as shown in the illustration.
    5. Remove the 2 clips and No. 3 dash panel insulator pad.

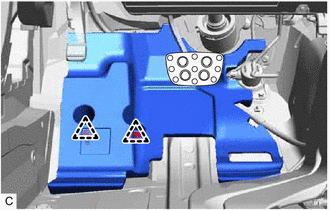

      GTY512393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE KICK DOWN SWITCH ASSEMBLY
    1. Disconnect the kick down switch assembly connector.

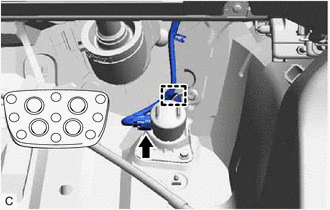

      GTY512394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the nut, 2 bolts and kick down switch assembly from the vehicle body.

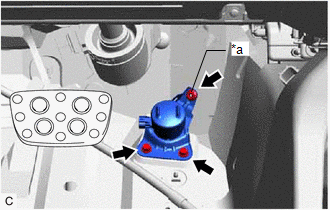

      GTY515455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut
