Reassembly [09/2014 - ]: Procedure

  1. INSTALL FRONT OIL PUMP OIL SEAL

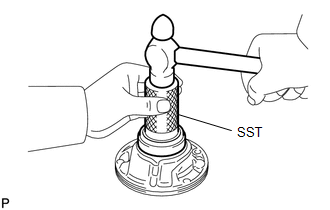

    1. Using SST and a hammer, install a new front oil pump oil seal to the front oil pump body sub-assembly.
      GTY465514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09350-30020
        1. 09351-32140

      Standard Depth

      -0.2 to 0.2 mm (-0.00787 to 0.00787 in.)

      HINT:

      The front oil pump oil seal end should be flush with the outer edge of the front oil pump body sub-assembly.

    2. Coat the lip of the front oil pump oil seal with MP grease.
  2. SECURE FRONT OIL PUMP BODY SUB-ASSEMBLY
    1. Install the front oil pump body sub-assembly to the torque converter assembly.
  3. INSTALL FRONT OIL PUMP DRIVEN GEAR

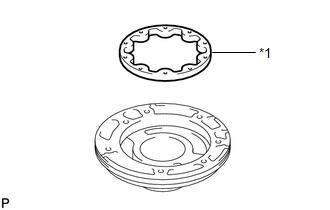

    GTY458036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Front Oil Pump Driven Gear
    1. Coat the front oil pump driven gear with ATF.
    2. Install the front oil pump driven gear to the front oil pump body sub-assembly.
  4. INSTALL FRONT OIL PUMP DRIVE GEAR

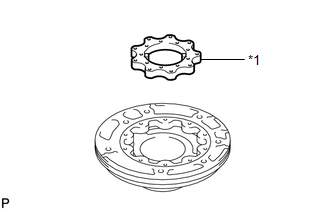

    GTY467075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Front Oil Pump Drive Gear
    1. Coat the front oil pump drive gear with ATF.
    2. Install the front oil pump drive gear to the front oil pump body sub-assembly.

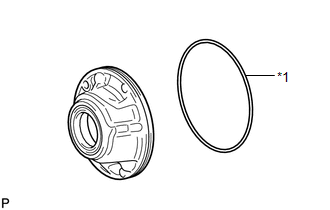

  5. INSTALL FRONT OIL PUMP BODY O-RING
    GTY463892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Front Oil Pump Body O-ring
    1. Coat a new front oil pump body O-ring with ATF and install it to the front oil pump body sub-assembly.
  6. INSTALL STATOR SHAFT ASSEMBLY
    1. Align the matchmarks, and install the stator shaft assembly to the front oil pump body sub-assembly quickly.

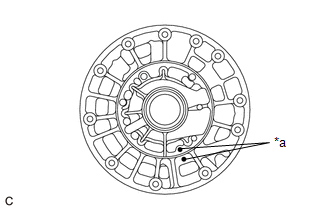

      GTY508356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark

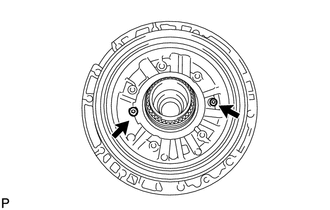

    2. Using a T30 "TORX" socket wrench, install the 2 bolts.
      GTY467058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10.8 N.m (110 kgf/cm, 8 ft.lbf)

  7. INSTALL STATOR SHAFT CLUTCH DRUM THRUST WASHER
    1. Align the 2 claws and install the stator shaft clutch drum thrust washer to the stator shaft assembly.

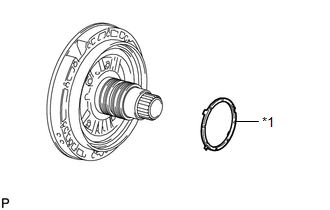

      GTY466186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stator Shaft Clutch Drum Thrust Washer
  8. INSTALL STATOR SHAFT PISTON

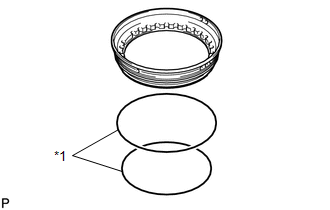

    GTY469375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 O-ring
    1. Coat 2 new O-rings with ATF and install them to the stator shaft piston.
    2. Install the stator shaft piston and stator shaft spring sub-assembly to the oil pump assembly.

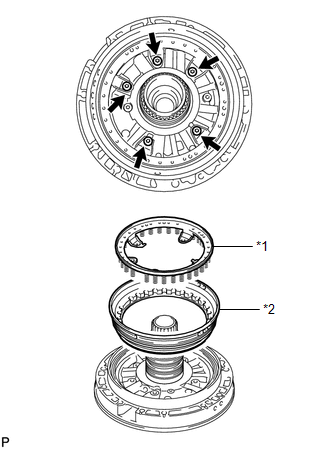

      GTY462980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stator Shaft Spring Sub-assembly
      *2 Stator Shaft Piston
    3. Using a T30 "TORX" socket wrench, install the 5 bolts.

      Torque: 10.8 N.m (110 kgf/cm, 8 ft.lbf)

  9. INSPECT FRONT OIL PUMP DRIVE GEAR ROTATION

    See step  5

  10. INSTALL CLUTCH DRUM OIL SEAL RING
    1. Coat 4 new clutch drum oil seal rings with ATF.
      NOTE:

      Do not expand the gap of the clutch drum oil seal rings excessively.

    2. Install the 4 clutch drum oil seal rings to the oil pump assembly.

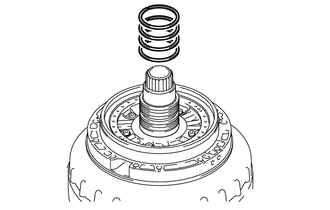

      GTY461087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      After installing the clutch drum oil seal rings, check that they rotate smoothly.

  11. INSTALL OIL PUMP O-RING
    1. Coat a new oil pump O-ring with ATF and install it to the oil pump assembly.
      GTY470885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Oil Pump Assembly
      *2 Oil Pump O-ring
