Adjustment [09/2014 - ]: Procedure

  1. DISCONNECT TRANSMISSION CONTROL SHAFT LEVER RH
    1. Move the shift lever to N.
    2. Remove the nut and spring washer, and disconnect the transmission control shaft lever RH from the manual valve lever shaft.

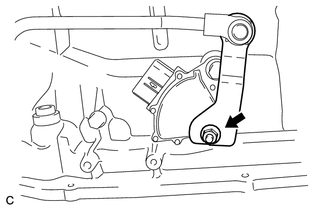

      GTY512865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Remove the bolt from the park/neutral position switch assembly.
    2. Clean the bolt and bolt hole.
    3. Align the neutral basic line with the groove as shown in the illustration.
      GTY465342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Neutral Basic Line
      *b Groove
    4. Apply adhesive to 2 or 3 threads on the end of the bolt.

      Adhesive

      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

    5. Hold the park/neutral position switch assembly in that position and tighten the bolt.

      Torque: 12.8 N.m (131 kgf/cm, 9 ft.lbf)

    6. After the adjustment, perform the park/neutral position switch assembly operation check.

      See step  1

  3. CONNECT TRANSMISSION CONTROL SHAFT LEVER RH
    1. Connect the transmission control shaft lever RH to the manual valve lever shaft with the spring washer and nut.

      Torque: 15.7 N.m (160 kgf/cm, 12 ft.lbf)
