Inspection [09/2014 - ]: Procedure

INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Measure the resistance according to the value(s) in the table below.

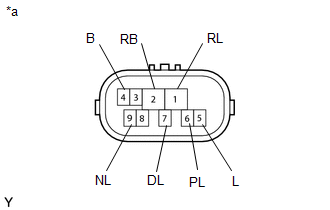

GTY460423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Component without harness connected (Park/Neutral Position Switch Assembly)

Standard Resistance

Tester Connection	Condition	Specified Condition
2 (RB) - 6 (PL) 4 (B) - 5 (L)	Shift lever in P	Below 1 Ω
2 (RB) - 1 (RL)	Shift lever in R	Below 1 Ω
2 (RB) - 9 (NL) 4 (B) - 5 (L)	Shift lever in N	Below 1 Ω
2 (RB) - 7 (DL)	Shift lever in D, M, "+" or "-"	Below 1 Ω
2 (RB) - 7 (DL)	Shift lever not in D, M, "+" or "-"	10 kΩ or higher
2 (RB) - 6 (PL)	Shift lever not in P	10 kΩ or higher
2 (RB) - 1 (RL)	Shift lever not in R	10 kΩ or higher
2(RB) - 9(NL)	Shift lever not in N	10 kΩ or higher
4 (B) - 5 (L)	Shift lever not in P or N	10 kΩ or higher

If the result is not as specified, replace the park/neutral position switch assembly.
