Removal [09/2014 - ]: Procedure

REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
Refer to REMOVAL [09/2014 - ]

DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY

Move the shift lever to N.

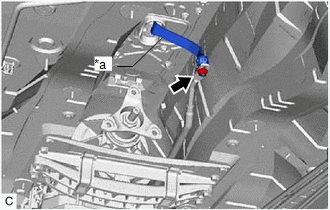

Remove the nut from the lever of the transmission floor shift assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Lever

Disconnect the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.

SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY

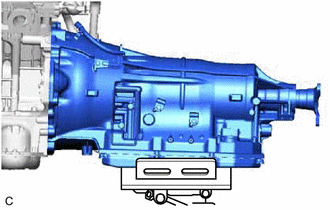

Support the automatic transmission assembly with a transmission jack.

NOTE:

In order to protect the automatic transmission oil pan sub-assembly, place attachments on the transmission jack.
Make sure that the attachments and automatic transmission oil pan sub-assembly are centered on the transmission jack.
To prevent the automatic transmission oil pan sub-assembly from being deformed, do not place any attachments under the automatic transmission oil pan sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL ENGINE UNDER COVER AIR GUIDE BRACKET

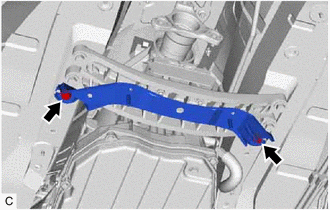

Remove the 2 bolts and engine under cover air guide bracket from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT REAR ENGINE MOUNTING MEMBER

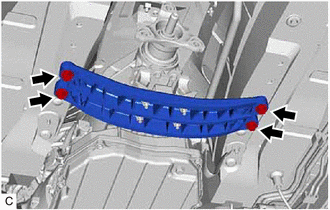

Remove the 4 bolts and disconnect the rear engine mounting member from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

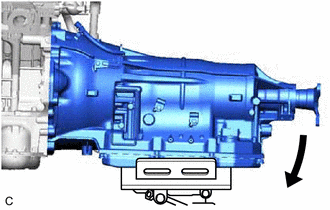

Tilt down the automatic transmission assembly.

NOTE:

Make sure that the vehicle body do not contact the engine assembly when tilting the automatic transmission assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

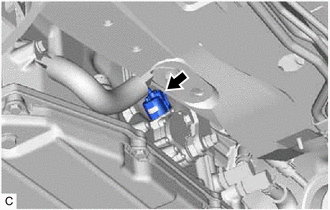

Disconnect the park/neutral position switch assembly connector.

Remove the nut, spring washer and transmission control shaft lever RH from the manual valve lever shaft.

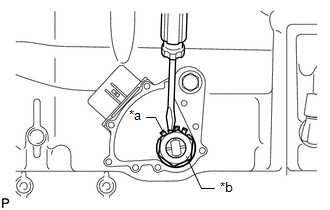

Using a screwdriver, bend back the tabs of the lock washer and remove the lock nut and lock washer from the park/neutral position switch assembly.

*a	Lock Washer
*b	Lock Nut

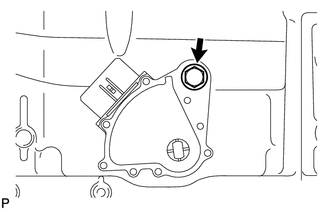

Remove the bolt and park/neutral position switch assembly from the automatic transmission assembly.

HINT:

Make sure that the manual valve lever shaft has not been rotated prior to installing the park/neutral position switch assembly as the detent spring may become detached from the manual valve lever shaft.
