Adjustment [09/2014 - ]: Procedure

Refer to REMOVAL [09/2014 - 10/2015] , or refer to REMOVAL [10/2015 - 03/2019] , or refer to REMOVAL [03/2019 - ]

Refer to PROCEDURE - Step 2

1. Move the shift lever to N.

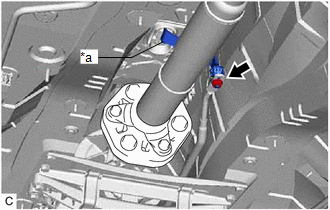

2. Remove the nut and disconnect the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Lever

3. Turn the transmission control shaft lever RH counterclockwise until it stops, then turn it clockwise 2 notches.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transmission Control Shaft Lever RH
   *a	P
   *b	R
   *c	N

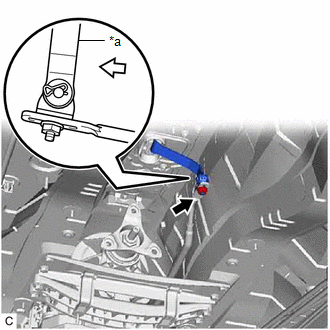

4. Connect the floor shift gear shifting rod sub-assembly to the lever of the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Lever
   	Rear of the vehicle

5. Temporarily install the nut to the lever of the transmission floor shift assembly.
6. Tighten the nut while lightly pushing the lever of the transmission floor shift assembly toward the rear of the vehicle.

   Torque: 12.8 N.m (131 kgf/cm, 9 ft.lbf)

   NOTE:

   Do not push the lever of the transmission floor shift assembly too hard.

Refer to PROCEDURE - Step 5 [09/2014 - 01/2023] , or refer to PROCEDURE - Step 5 [01/2023 - ]

Refer to INSTALLATION [09/2014 - 10/2015] , or refer to INSTALLATION [10/2015 - 03/2019] , or refer to INSTALLATION [03/2019 - ]

See step  1

Refer to PROCEDURE - Step 9 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 9 [10/2015 - 03/2019] , or refer to PROCEDURE - Step 9 [03/2019 - ]
