Disassembly [09/2014 - ]: Procedure

  1. REMOVE REMOTE OPERATION CONTROLLER ASSEMBLY

    Refer to PROCEDURE - Step 7

  2. REMOVE SHIFT POSITION INDICATOR

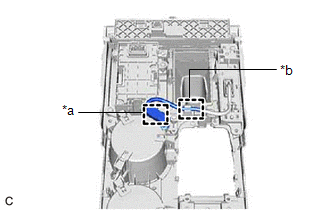

    1. Disengage the clamp and guide.
      GTY500188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide

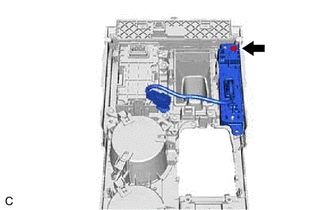

    2. Remove the screw and shift position indicator from the console panel sub-assembly.
      GTY499667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
