Inspection [09/2014 - ]: Procedure
- INSPECT TRANSMISSION FLOOR SHIFT ASSEMBLY
HINT:
If the results of the following inspections are as specified but a malfunction has occurred, replace the transmission floor shift assembly.
- Disconnect the shift lock control ECU connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

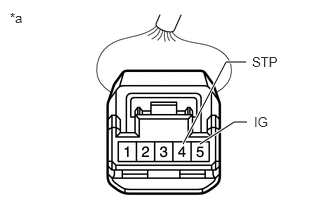

Tester Connection Condition Specified Condition 5 (IG) - Body ground Engine switch on (IG) 11 to 14 V Engine switch off Below 1 V 4 (STP) - Body ground Brake pedal depressed 11 to 14 V Brake pedal released Below 1 V *a Front view of wire harness connector
(to Shift Lock Control ECU)If the result is not as specified, repair or replace the shift lock control ECU wire harness.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

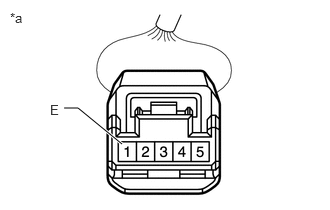

Tester Connection Condition Specified Condition 1 (E) - Body ground Always Below 1 Ω *a Front view of wire harness connector
(to Shift Lock Control ECU)If the result is not as specified, repair or replace the shift lock control ECU wire harness.
- INSPECT TRANSMISSION CONTROL SWITCH
- Disconnect the transmission control switch connector.
- Measure the resistance according to the value(s) in the table below.

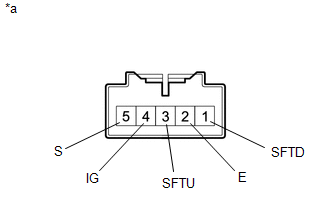

*a Component without harness connected
(Transmission Control Switch)Standard Resistance
Tester Connection Condition Specified Condition 4 (IG) - 5 (S) Shift lever in M, "+" or "-" Below 1 Ω Shift lever not in M, "+" or "-" 10 kΩ or higher 3 (SFTU) - 2 (E) Shift lever held in "+" (Up shift) Below 1 Ω Shift lever in M 10 kΩ or higher 1 (SFTD) - 2 (E) Shift lever held in "-" (Down shift) Below 1 Ω Shift lever in M 10 kΩ or higher If the result is not as specified, replace the transmission floor shift assembly.
