Removal [09/2014 - ]: Procedure

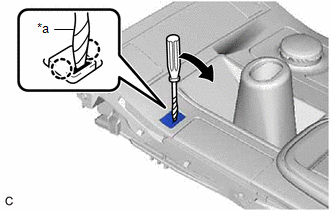

1. Using a screwdriver, disengage the 2 claws as shown in the illustration and remove the shift lever cap from the shift position indicator.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Do not damage the shift lever cap and shift position indicator.

   HINT:

   Tape the screwdriver tip before use.

Refer to REMOVAL [09/2014 - 10/2015] , or refer to REMOVAL [10/2015 - 03/2019] , or refer to REMOVAL [03/2019 - ]

Refer to PROCEDURE - Step 2

1. Move the shift lever to N.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Lever

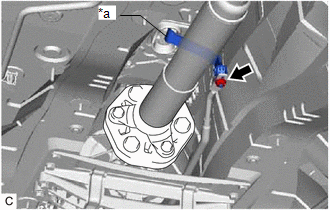

   Remove the nut and disconnect the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.

Refer to REMOVAL [09/2014 - 03/2019] , or refer to REMOVAL [03/2019 - ]

1. Disengage the clamp to disconnect the wire harness from the No. 1 console box duct.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

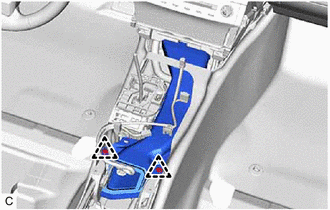

2. Remove the 2 clips and No. 1 console box duct.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

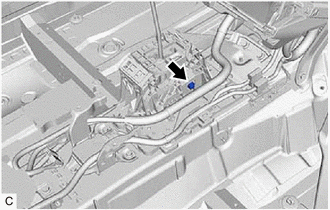

1. Disconnect the shift lock control ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

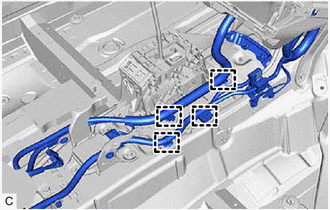

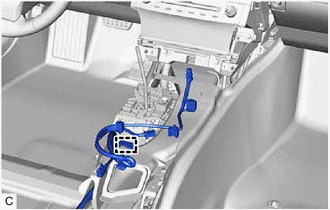

2. Disengage the 4 clamps to disconnect the wire harness from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

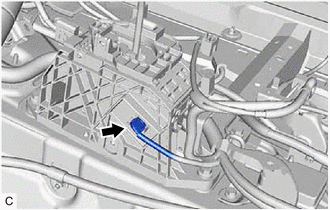

3. Disconnect the transmission control switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

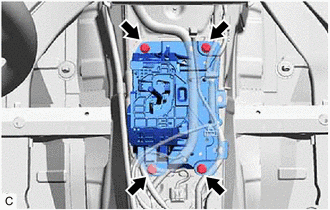

4. Remove the 4 bolts and transmission floor shift assembly from the vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
