Removal [11/2017 - ]: Procedure

Refer to REMOVAL [11/2017 - ]

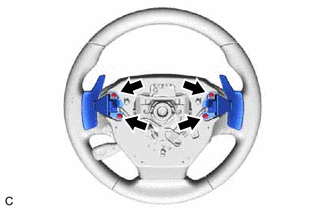

1. Remove the 4 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

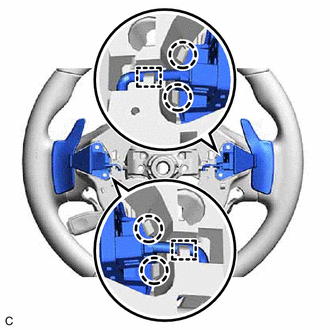

2. Disengage the 4 claws and 2 guides to disconnect the 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

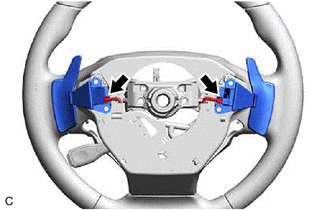

3. Disconnect the 2 shift paddle switch (transmission shift switch assembly) connectors to remove the 2 shift paddle switches (transmission shift switch assemblies) from the No. 1 switch wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform this procedure only when replacement of the No. 1 switch wire is necessary.

1. Remove cruise control main switch.

   Refer to PROCEDURE - Step 2

2. Remove steering pad switch assembly.

   Refer to PROCEDURE - Step 3

3. Remove steering vibration and heater ECU.

   Refer to PROCEDURE - Step 5

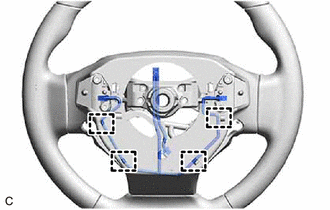

4. Disengage the 4 guides to remove the No. 1 switch wire from the lower steering wheel boss cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the heater thermistor comes off the lower steering wheel cover, replace the steering wheel assembly.

   HINT:

   Do not remove the lower steering wheel boss cover from the steering wheel sub-assembly. Loosen the lower steering boss cover.
