Removal [09/2014 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023] , or refer to INITIALIZATION [01/2023 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 1 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 1 [03/2019 - 01/2023] , or refer to PROCEDURE - Step 1 [01/2023 - ]
- REMOVE ENGINE ROOM ECU COVER
Refer to PROCEDURE - Step 3
- REMOVE TCM
*a Junction Connector Disconnect the engine wire harness connector (A) as shown in the illustration.

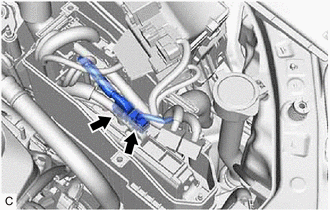

- Disconnect the engine wire harness connector (B) as shown in the illustration.

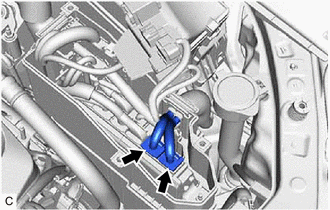

- Disengage the claw and disconnect the junction connector from the connector holder.
- Using a screwdriver, disengage the claw.
- Disconnect the grommet and connector holder from the engine room ECM box.
- Disconnect the 2 ECM connectors.NOTE:
After disconnecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.
- Disconnect the 2 TCM connectors.

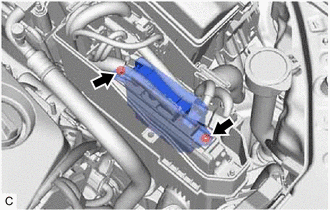

- Remove the 2 nuts and TCM from the engine room ECM box.NOTE:
If the TCM has been struck or dropped, replace it.

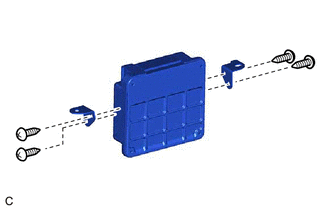

- Remove the 4 screws and 2 brackets from the TCM.
