Components [09/2014 - ]

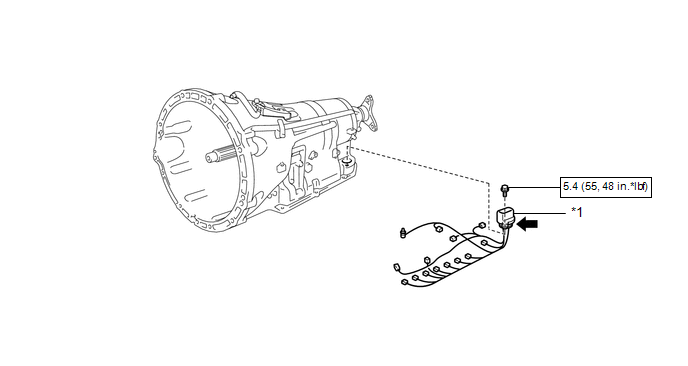

Fig 1: Transmission Wire Replacement Components With Torque Specifications
GTY502320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION WIRE - -
N.m (kgf/cm, ft.lbf): Specified torque ATF WS
