Inspection [09/2014 - ]: Procedure
- INSPECT TRANSMISSION WIRE

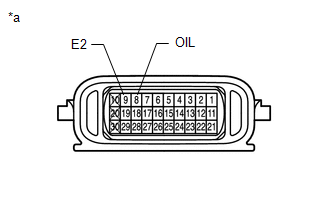

*a Component without harness connected
(Transmission Wire (ATF Temperature Sensor))- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection ATF Temperature Specified Condition 8 (OIL) - Body ground Always 10 kΩ or higher 9 (E2) - Body ground Always 10 kΩ or higher HINT:
If the result is not as specified following at any of the ATF temperatures shown in the table below, the driveability of the vehicle may decrease.
Standard Resistance
Tester Connection ATF Temperature Specified Condition 8 (OIL) - 9 (E2) 10°C (50°F) 5 to 8 kΩ 8 (OIL) - 9 (E2) 25°C (77°F) 2.5 to 4.5 kΩ 8 (OIL) - 9 (E2) 110°C (230°F) 0.22 to 0.28 kΩ If the result is not as specified, replace the transmission wire (ATF temperature sensor).
- Measure the resistance according to the value(s) in the table below.
