Installation [09/2014 - ]: Procedure

  1. INSTALL TRANSMISSION WIRE
    1. Coat the O-ring with ATF.
    2. Install the transmission wire to the automatic transmission case sub-assembly with the bolt.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

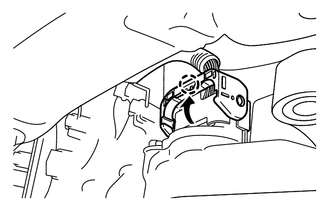

    3. Connect the transmission wire connector and raise the lever to engage the claw.
      GTY520786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Push up the lever until the claw of the transmission wire connector makes a connection sound.

    4. Connect the transmission revolution sensor (SP2) connector.
    5. Connect the transmission revolution sensor (NT) connector.
    6. Connect the transmission revolution sensor (NC3) connector.
  2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

    Refer to INSTALLATION [09/2014 - ]
