Removal [09/2014 - ]: Procedure

  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE TRANSMISSION WIRE
    1. Disconnect the transmission revolution sensor (NC3) connector.
      GTY505805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Revolution Sensor (NC3) Connector
      *b Transmission Revolution Sensor (NT) Connector
      *c Transmission Revolution Sensor (SP2) Connector
    2. Disconnect the transmission revolution sensor (NT) connector.
    3. Disconnect the transmission revolution sensor (SP2) connector.
    4. Disconnect the transmission wire connector.

      HINT:

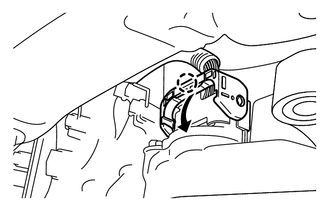

      Disengage the claw, pull down the lever, and then disconnect the transmission wire connector.

      GTY512430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt and transmission wire from the automatic transmission case sub-assembly.
      GTY466949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
