Installation [09/2014 - ]: Procedure

1. Install the spring and check ball body to the automatic transmission case sub-assembly.

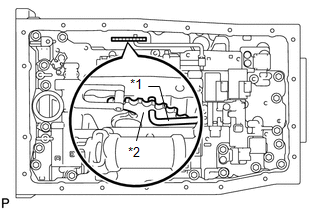

2. Connect the manual valve connecting rod to the manual valve lever sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Manual Valve Connecting Rod
   *2	Manual Valve Lever Sub-assembly

3. Install the transmission valve body assembly to the automatic transmission case sub-assembly with the 17 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

   Bolt Length

   Bolt (A)	21 mm (0.827 in.)
   Bolt (B)	31 mm (1.22 in.)
   Bolt (C)	64 mm (2.52 in.)

4. Install the detent spring and detent spring cover with the bolt.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

5. Connect the 9 shift solenoid valve connectors.
6. Connect the oil pressure switch connector.
7. Coat the O-ring with ATF.
8. Connect the ATF temperature sensor and install the lock plate with the bolt.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

1. Coat a new O-ring with ATF and install it to the valve body oil strainer assembly.
   NOTE:

   Ensure that the O-ring is not twisted or pinched.

2. Install the valve body oil strainer assembly to the transmission valve body assembly with the 4 bolts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

1. Install the 3 transmission oil cleaner magnets to the automatic transmission oil pan sub-assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transmission Oil Cleaner Magnet

2. Install a new automatic transmission oil pan gasket to the automatic transmission oil pan sub-assembly.
3. Install the automatic transmission oil pan sub-assembly with automatic transmission oil pan gasket to the automatic transmission case sub-assembly with the 9 bolts.

   Torque: 7.4 N.m (75 kgf/cm, 65 in.lbf)

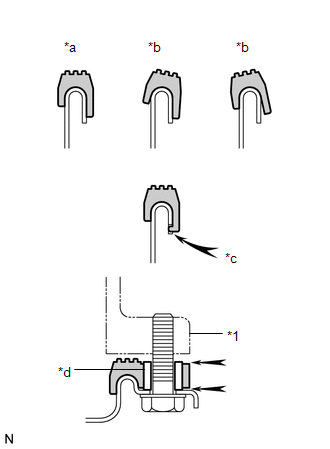

   NOTE:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Automatic Transmission Case Sub-assembly
   *a	Correct
   *b	Incorrect
   *c	Protrusion
   *d	Sleeve

   • Make sure that automatic transmission oil pan gasket seal surface and automatic transmission oil pan sub-assembly contact surface are free of oil and foreign matter.
   • Install the automatic transmission oil pan gasket so that there is no slack in the automatic transmission oil pan gasket, and the entire seal surface is level.
   • Make sure that the 9 protrusions are properly engaged to the automatic transmission oil pan sub-assembly.
   • When installing the automatic transmission oil pan sub-assembly, make sure that the automatic transmission oil pan gasket is not pinched between a sleeve and the seal surface of the automatic transmission case sub-assembly.

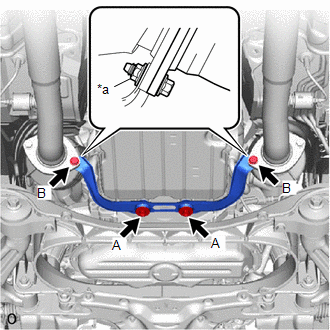

1. Install the No. 1 exhaust pipe support bracket sub-assembly to the exhaust manifold sub-assembly LH (TWC: Front Catalyst), exhaust manifold sub-assembly RH (TWC: Front Catalyst) and automatic transmission assembly with the 2 bolts (A), 2 new bolts (B) and 2 new nuts.

   for Bolt (A)

   Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

   for Bolt (B)

   Torque: 39 N.m (398 kgf/cm, 29 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Nut

   HINT:

   Tighten the bolt (B) while holding the nut.

Refer to ADJUSTMENT [09/2014 - 03/2019] , or refer to ADJUSTMENT [03/2019 - ]

Refer to INITIALIZATION [09/2014 - ]
