Inspection [11/2017 - ]: Procedure

  1. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Measure the resistance according to the value(s) in the table below.

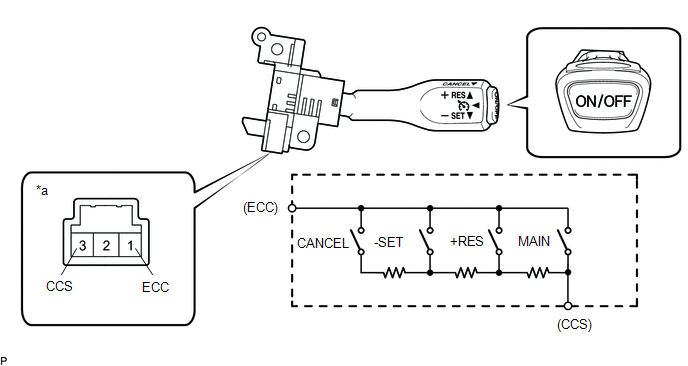

      GTY783839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Cruise Control Switch)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (ECC) - 3 (CCS) Cruise control switch (ON/OFF button) released 1 MΩ or higher
      Cruise control switch (ON/OFF button) pushed Below 2.5 Ω
      +RES 235 to 245 Ω
      -SET 617 to 643 Ω
      CANCEL 1509 to 1571 Ω
    2. If the result is not as specified, replace the cruise control main switch.
