Installation [09/2014 - ]: Procedure

  1. INSTALL CRUISE CONTROL MAIN SWITCH
    1. Connect the connector.

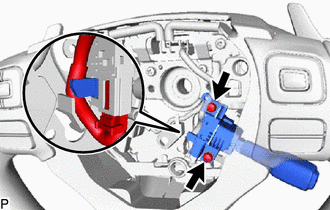

    2. Install the cruise control main switch with the 2 screws shown in the illustration.
      GTY501525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.4 N.m (24 kgf/cm, 21 in.lbf)

  2. INSTALL HORN BUTTON ASSEMBLY

    Refer to INSTALLATION [09/2014 - ]
