Inspection [09/2014 - ]: Procedure
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY (w/ Seat Position Memory System)
- Check that the LED illuminates.

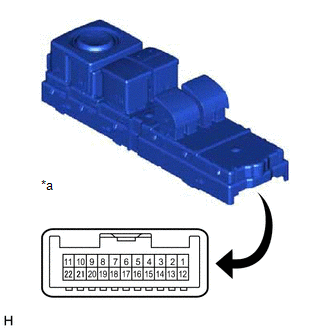

*a Component without harness connected
(Multiplex Network Master Switch Assembly)- Apply battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
OK
Battery Connection Specified Condition Battery positive (+) → 18
Battery negative (-) → 12LED illuminates If the result is not as specified, replace the multiplex network master switch assembly.
- Apply battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
- Check that the LED illuminates.
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY (w/o Seat Position Memory System)

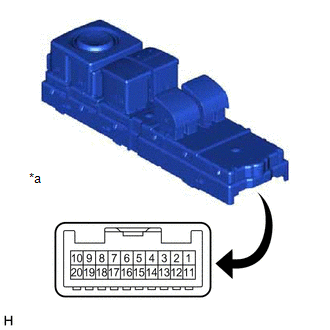

*a Component without harness connected
(Multiplex Network Master Switch Assembly)Check that the LED illuminates.
- Apply battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
OK
Battery Connection Specified Condition Battery positive (+) → 19
Battery negative (-) → 17LED illuminates If the result is not as specified, replace the multiplex network master switch assembly.
- Apply battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
