Components [09/2014 - ]

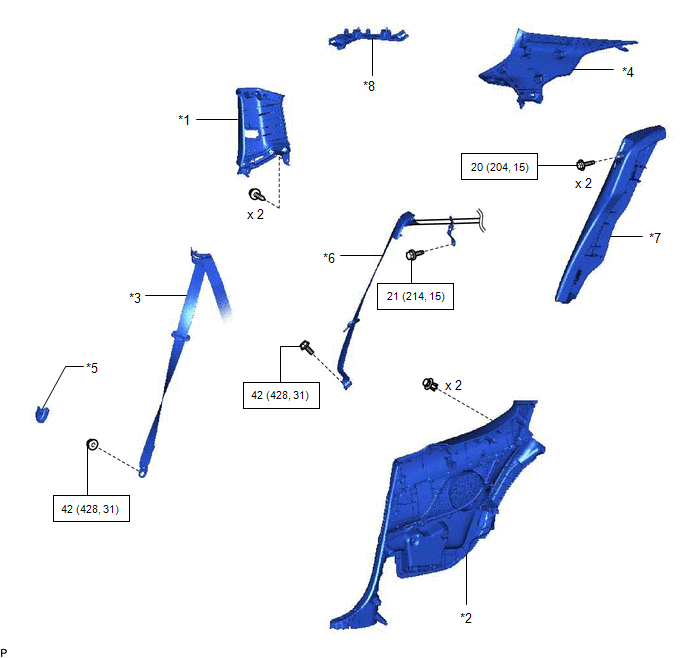

Fig 1: Quarter Window Glass Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Quarter Window Glass Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER PILLAR GARNISH ASSEMBLY LH	*2	FRONT QUARTER TRIM PANEL ASSEMBLY LH
*3	FRONT SEAT OUTER BELT ASSEMBLY LH	*4	INNER ROOF SIDE GARNISH ASSEMBLY LH
*5	LAP BELT OUTER ANCHOR COVER	*6	REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH
*7	REAR SIDE SEATBACK ASSEMBLY LH	*8	ROOF SIDE RAIL GARNISH ASSEMBLY LH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

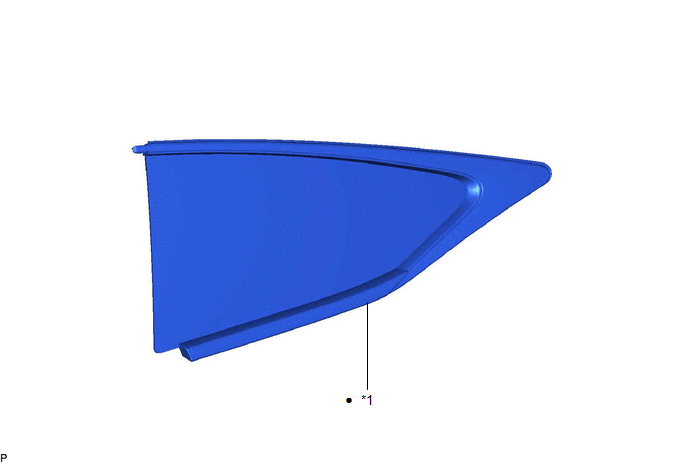

Fig 3: Quarter Window Glass Replacement Components (3 Of 3)

*1	QUARTER WINDOW ASSEMBLY	-	-
•	Non-reusable part	-	-
