On-Vehicle Inspection [09/2014 - 03/2019]: Procedure
- INSPECT BRAKE PEDAL SUPPORT ASSEMBLY
- Make sure that there is no looseness in the locking part and the connecting part of the connector.

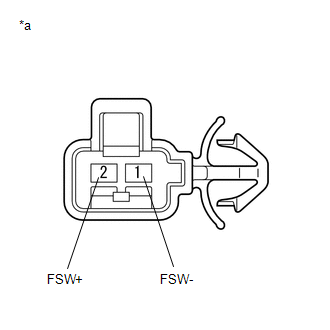

*a Component without harness connected
(Brake Pedal Load Sensing Switch (Brake Pedal Support Assembly)) - Disconnect the brake pedal load sensing switch (brake pedal support assembly) connector.
- Check both the connector case and the terminal for deformation and corrosion.
OK
No deformation or corrosion.
NOTE:- Do not remove the brake pedal load sensing switch from the brake pedal support assembly.
- When there is a malfunction in the brake pedal load sensing switch, replace the brake pedal support assembly.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 2 (FSW+) - 1 (FSW-) Switch OFF (Brake pedal depressed) 950 to 1050 Ω 2 (FSW+) - 1 (FSW-) Switch ON (Brake pedal released) 203 to 223 Ω If the result is not as specified, replace the brake pedal load sensing switch (brake pedal support assembly).
- Make sure that there is no looseness in the locking part and the connecting part of the connector.
