Components [09/2014 - ]

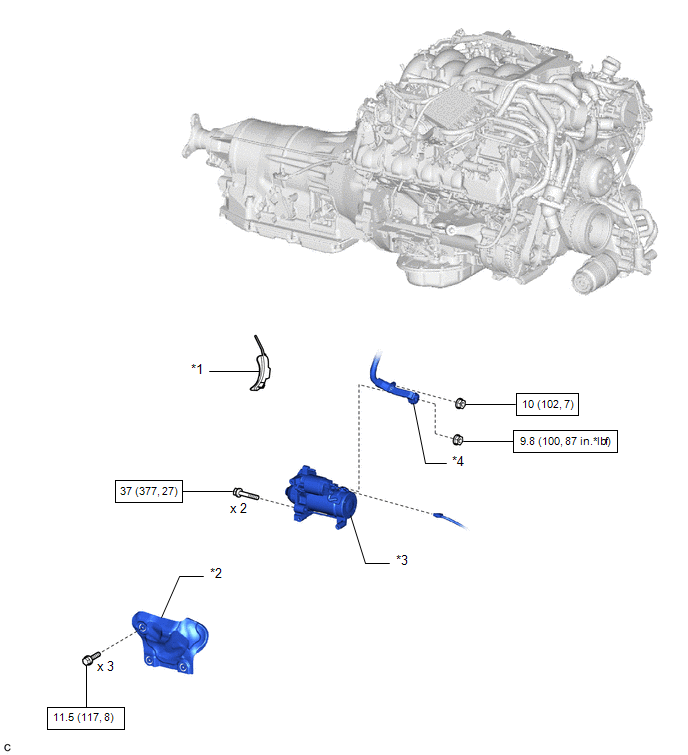

Fig 1: Starter Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FLYWHEEL HOUSING SIDE COVER	*2	NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
*3	STARTER ASSEMBLY	*4	TERMINAL COVER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

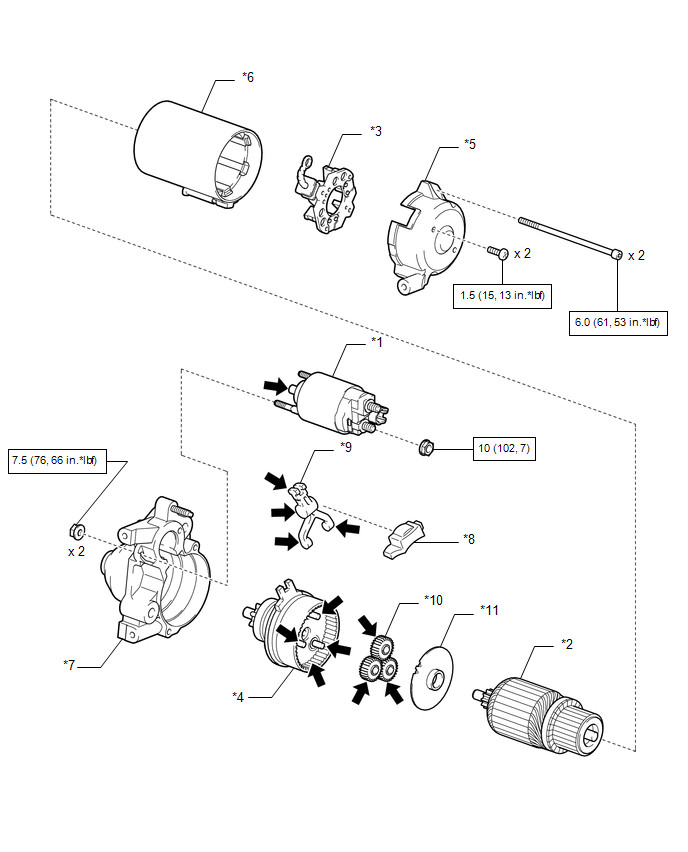

Fig 2: Starter Replacement Components With Torque Specifications (2 Of 2)

*1	MAGNET STARTER SWITCH ASSEMBLY	*2	STARTER ARMATURE ASSEMBLY
*3	STARTER BRUSH HOLDER ASSEMBLY	*4	STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY
*5	STARTER COMMUTATOR END FRAME ASSEMBLY	*6	STARTER YOKE ASSEMBLY
*7	STARTER DRIVE HOUSING ASSEMBLY	*8	RUBBER SEAL
*9	PINION DRIVE LEVER	*10	PLANETARY GEAR
*11	STARTER ARMATURE PLATE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque		High-temperature Grease
