Installation [09/2014 - ]: Procedure
- INSTALL FUEL PRESSURE REGULATOR ASSEMBLY (for Brush Type Motor)
- Apply a light coat of gasoline to 2 new O-rings and then install them to the fuel pressure regulator assembly.
- Install the fuel pressure regulator assembly to the fuel filter.NOTE:
- The fuel pressure regulator assembly has an identification mark (part number). Be sure to install the correct part to the correct location or engine stall may occur.
- Make sure that the O-rings are not cut or pinched during installation.
HINT:

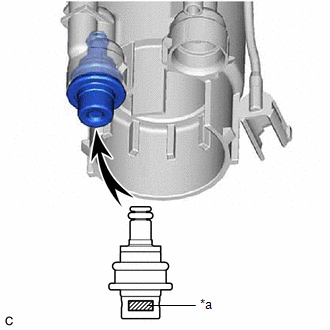

Fuel Pressure Regulator Assembly 23280-***** *a Identification Mark (Part Number) - Engage the 2 claws to install the No. 2 fuel suction support to the fuel filter.NOTE:
Securely engage the claws.
- INSTALL FUEL PUMP WITH FILTER ASSEMBLY (for Brush Type Motor)
Refer to REASSEMBLY [09/2014 - ]
- INSTALL FUEL PRESSURE REGULATOR ASSEMBLY (for Brushless Type Motor)
- Apply a light coat of gasoline to 2 new O-rings and then install them to the fuel pressure regulator assembly.
- Install the fuel pressure regulator assembly to the fuel filter.NOTE:
- The fuel pressure regulator assembly has an identification mark (part number). Be sure to install the correct part to the correct location or engine stall may occur.
- Make sure that the O-rings are not cut or pinched during installation.
HINT:

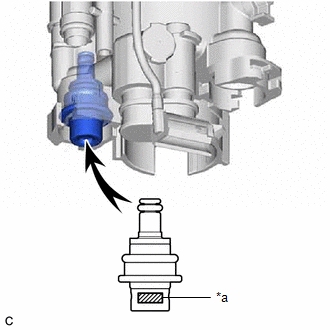

Fuel Pressure Regulator Assembly 23280-***** *a Identification Mark (Part Number) - Install the clip to the fuel filter.
- INSTALL FUEL PUMP FILTER (for Brushless Type Motor)
Refer to REASSEMBLY [09/2014 - ]
- INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Refer to INSTALLATION [09/2014 - ]
