Removal [09/2014 - ]: Procedure

  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE FUEL PUMP WITH FILTER ASSEMBLY (for Brush Type Motor)

    Refer to DISASSEMBLY [09/2014 - ]

  3. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY (for Brush Type Motor)

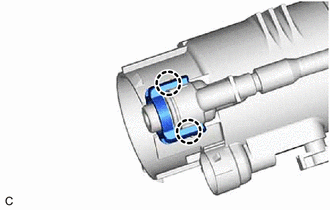

    1. Disengage the 2 claws to remove the No. 2 fuel suction support from the fuel filter.
      GTY1084370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

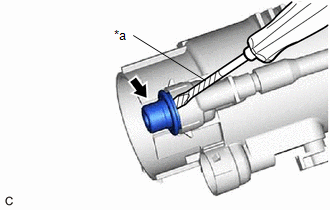

    2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel pressure regulator assembly.
      NOTE:

      Slowly pull out the fuel pressure regulator assembly because the O-rings are firmly installed between the fuel pressure regulator assembly and the fuel filter.

      GTY1084359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

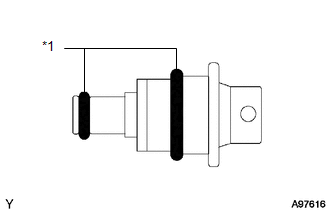

    3. Remove the 2 O-rings from the fuel pressure regulator assembly.
      GTY467360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
  4. REMOVE FUEL PUMP FILTER (for Brushless Type Motor)

    Refer to DISASSEMBLY [09/2014 - ]

  5. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY (for Brushless Type Motor)

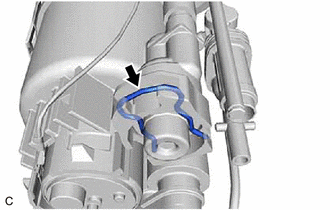

    1. Remove the clip from the fuel filter.
      GTY804761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

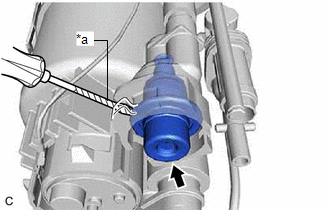

    2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel pressure regulator assembly.
      NOTE:
      • Slowly pull out the fuel pressure regulator assembly because the O-rings are firmly installed between the fuel pressure regulator assembly and the fuel filter.
      • Do not damage the fuel filter.
      GTY1138102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    3. Remove the 2 O-rings from the fuel pressure regulator assembly.
      GTY467360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
