Battery, Starting & Charging System CHECKSHEET

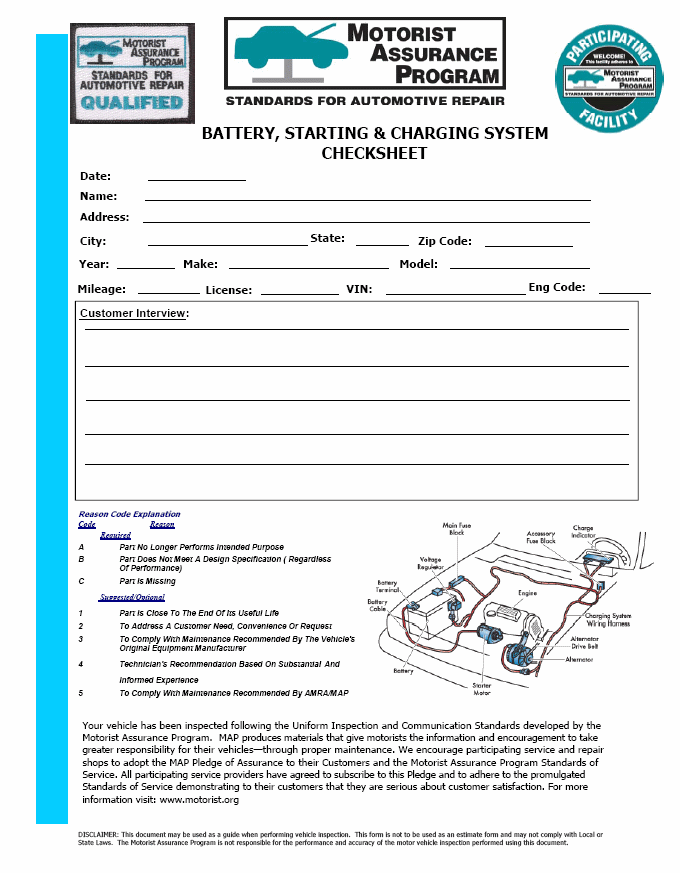

Fig 1: Battery, Starting & Charging System Checksheet (1 Of 2)
G00016166

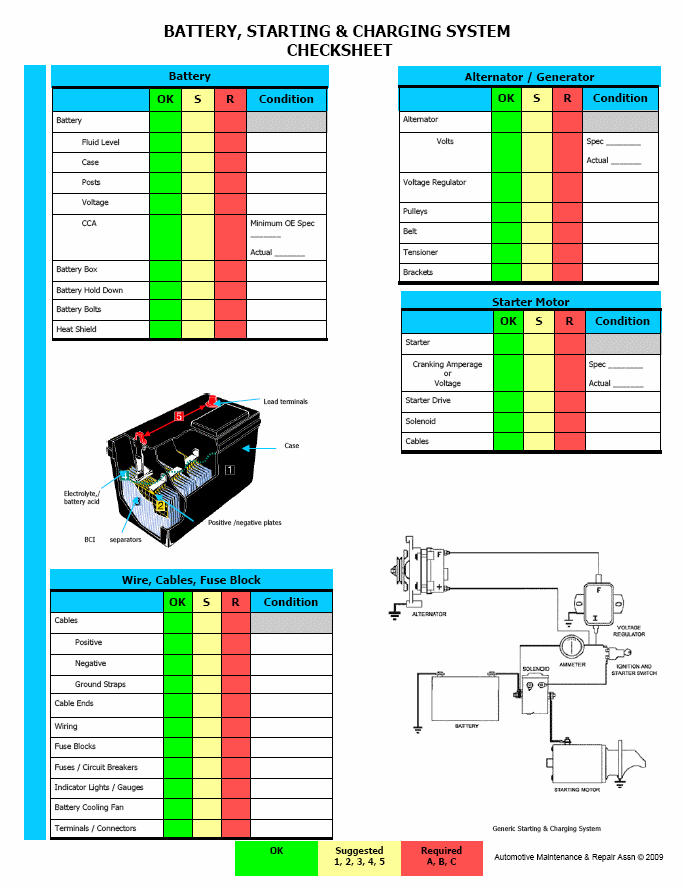

Fig 2: Battery, Starting & Charging System Checksheet (2 Of 2)
G00016167
