Removal [09/2014 - 11/2017]: Procedure

Refer to REMOVAL [09/2014 - 11/2017]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

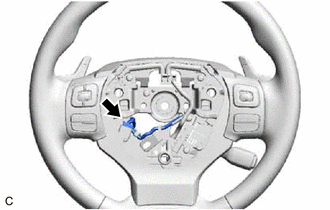

   Disengage the No. 1 switch wire connector clamp from the steering wheel assembly.

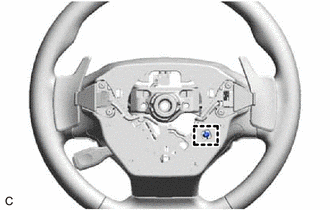

2. Disconnect the No. 1 switch wire connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

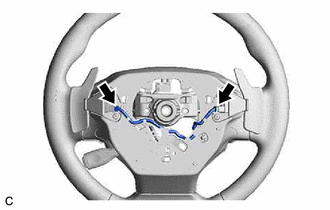

3. Disconnect the 2 shift paddle switch (transmission shift switch assembly) connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

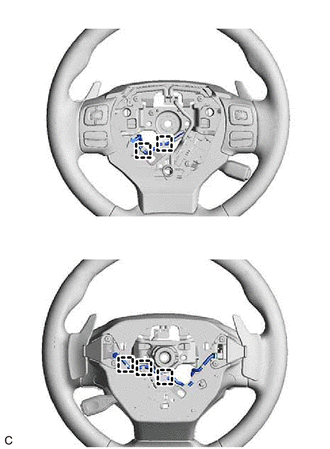

4. Disengage the 5 guides to remove the No. 1 switch wire from the steering wheel assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

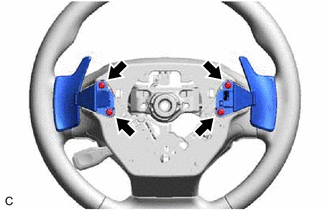

5. Remove the 4 screws and 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
